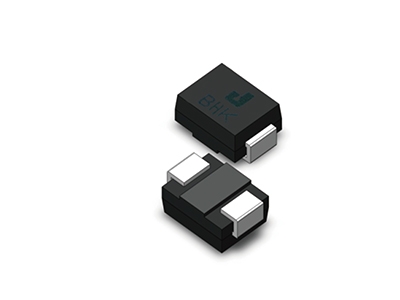

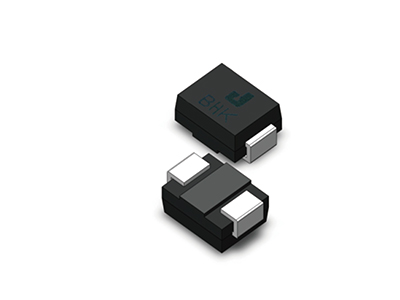

SMDJ系列TVS二極管
SMDJ系列TVS二極管專為保護敏感電子設備免受雷擊或其他瞬態電壓事件引起的電壓瞬變而設計。
- 品牌： 集電通/JDTFUSE
- 分類： TVS二極管
- 最大電壓： 5~440V
- 額定電流： ~

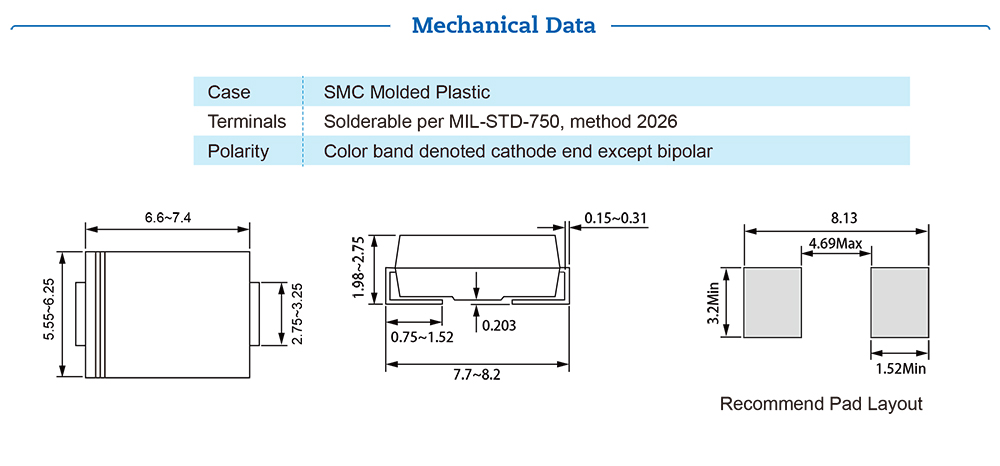

SMDJ二極管規格書
Model | Reverse Stand off Voltage VR | Breakdown Voltage VBR @ IT | Test Current IT | Clamping Voltage VC @ Ipp | Peak Pulse Current Ipp (A) | Reverse Leakage IR @ VR | Marking | |||
(Uni) | (Bi) | (V) | Min(V) | Max(V) | (mA) | Max(V) | Max(A) | Max(μA) | Uni. | Bi. |
SMDJ5.0A | SMDJ5.0CA | 5.0 | 6.40 | 7.00 | 10 | 9.2 | 326.1 | 800 | RDE | DDE |
SMDJ6.0A | SMDJ6.0CA | 6.0 | 6.67 | 7.37 | 10 | 10.3 | 291.3 | 800 | RDG | DDG |
SMDJ6.5A | SMDJ6.5CA | 6.5 | 7.22 | 7.98 | 10 | 11.2 | 267.9 | 500 | RDK | DDK |
SMDJ7.0A | SMDJ7.0CA | 7.0 | 7.78 | 8.60 | 10 | 12.0 | 250.0 | 200 | PDM | DDM |
SMDJ7.5A | SMDJ7.5CA | 7.5 | 8.33 | 9.21 | 1 | 12.9 | 232.6 | 100 | PDP | DDP |
SMDJ8.0A | SMDJ8.0CA | 8.0 | 8.89 | 9.83 | 1 | 13.6 | 220.6 | 50 | PDR | DDR |
SMDJ8.5A | SMDJ8.5CA | 8.5 | 9.44 | 10.4 | 1 | 14.4 | 208.3 | 20 | PDT | DDT |
SMDJ9.0A | SMDJ9.0CA | 9.0 | 10.0 | 11.1 | 1 | 15.4 | 194.8 | 10 | PDV | DDV |
SMDJ10A | SMDJ10CA | 10 | 11.1 | 12.3 | 1 | 17.0 | 176.5 | 5 | PDX | DDX |
SMDJ11A | SMDJ11CA | 11 | 12.2 | 13.5 | 1 | 18.2 | 164.8 | 1 | PDZ | DDZ |
SMDJ12A | SMDJ12CA | 12 | 13.3 | 14.7 | 1 | 19.9 | 150.8 | 1 | PEE | DEE |
SMDJ13A | SMDJ13CA | 13 | 14.4 | 15.9 | 1 | 21.5 | 139.5 | 1 | PEG | DEG |
SMDJ14A | SMDJ14CA | 14 | 15.6 | 17.2 | 1 | 23.2 | 129.3 | 1 | PEK | DEK |
SMDJ15A | SMDJ15CA | 15 | 16.7 | 18.5 | 1 | 24.4 | 123.0 | 1 | PEM | DEM |
SMDJ16A | SMDJ16CA | 16 | 17.8 | 19.7 | 1 | 26.0 | 115.4 | 1 | PEP | DEP |
SMDJ17A | SMDJ17CA | 17 | 18.9 | 20.9 | 1 | 27.6 | 108.7 | 1 | PER | DER |
SMDJ18A | SMDJ18CA | 18 | 20.0 | 22.1 | 1 | 29.2 | 102.7 | 1 | PET | DET |
SMDJ20A | SMDJ20CA | 20 | 22.2 | 24.5 | 1 | 32.4 | 92.6 | 1 | PEV | DEV |
SMDJ22A | SMDJ22CA | 22 | 24.4 | 26.9 | 1 | 35.5 | 84.5 | 1 | PEX | DEX |
SMDJ24A | SMD24CA | 24 | 26.7 | 29.5 | 1 | 38.9 | 77.1 | 1 | PEZ | DEZ |
SMDJ26A | SMDJ26CA | 26 | 28.9 | 31.9 | 1 | 42.1 | 71.3 | 1 | PFE | DFE |
SMDJ28A | SMDJ28CA | 28 | 31.1 | 34.4 | 1 | 45.4 | 66.1 | 1 | PFG | DFG |
SMDJ30A | SMDJ30CA | 30 | 33.3 | 36.8 | 1 | 48.4 | 62.0 | 1 | PFK | DFK |
SMDJ33A | SMDJ33CA | 33 | 36.7 | 40.6 | 1 | 53.3 | 56.3 | 1 | PFM | DFM |
SMDJ36A | SMDJ36CA | 36 | 40.0 | 44.2 | 1 | 58.1 | 51.6 | 1 | PFP | DFP |
SMDJ40A | SMDJ40CA | 40 | 44.4 | 49.1 | 1 | 64.5 | 46.5 | 1 | PFR | DFR |
SMDJ43A | SMDJ43CA | 43 | 47.8 | 52.8 | 1 | 69.4 | 43.2 | 1 | PFT | DFT |
SMDJ45A | SMDJ45CA | 45 | 50.0 | 55.3 | 1 | 72.7 | 41.3 | 1 | PFV | DFV |
SMDJ48A | SMDJ48CA | 48 | 53.3 | 58.9 | 1 | 77.4 | 38.8 | 1 | PFX | DFX |
SMDJ51A | SMDJ51CA | 51 | 56.7 | 62.7 | 1 | 82.4 | 36.4 | 1 | PFZ | DFZ |
SMDJ54A | SMDJ54CA | 54 | 60.0 | 66.3 | 1 | 87.1 | 34.4 | 1 | PGE | DGE |
SMDJ58A | SMDJ58CA | 58 | 64.4 | 71.2 | 1 | 93.6 | 32.1 | 1 | PGG | DGG |
SMDJ60A | SMDJ60CA | 60 | 66.7 | 73.7 | 1 | 96.8 | 31.0 | 1 | PGK | DGK |
SMDJ64A | SMDJ64CA | 64 | 71.1 | 78.6 | 1 | 103 | 29.1 | 1 | PGM | DGM |
SMDJ70A | SMDJ70CA | 70 | 77.8 | 86.0 | 1 | 113 | 26.5 | 1 | PGP | DGP |
SMDJ75A | SMDJ75CA | 75 | 83.3 | 92.1 | 1 | 121 | 24.8 | 1 | PGR | DGR |
SMDJ78A | SMDJ78CA | 78 | 86.7 | 95.8 | 1 | 126 | 23.8 | 1 | PGT | DGT |
SMDJ85A | SMDJ85CA | 85 | 94.4 | 104 | 1 | 137 | 21.9 | 1 | PGV | DGV |
SMDJ90A | SMDJ90CA | 90 | 100 | 111 | 1 | 146 | 20.5 | 1 | PGX | DGX |
SMDJ100A | SMDJ100CA | 100 | 111 | 123 | 1 | 162 | 18.5 | 1 | PGZ | DGZ |
SMDJ110A | SMDJ110CA | 110 | 122 | 135 | 1 | 177 | 16.9 | 1 | PHE | DHE |
SMDJ120A | SMDJ120CA | 120 | 133 | 147 | 1 | 193 | 15.5 | 1 | PHG | DHG |
SMDJ130A | SMDJ130CA | 130 | 144 | 159 | 1 | 209 | 14.4 | 1 | PHK | DHK |
SMDJ150A | SMDJ150CA | 150 | 167 | 185 | 1 | 243 | 12.3 | 1 | PHM | DHM |
SMDJ160A | SMDJ160CA | 160 | 178 | 197 | 1 | 259 | 11.6 | 1 | PHP | DHP |
SMDJ170A | SMDJ170CA | 170 | 189 | 209 | 1 | 275 | 10.9 | 1 | PHR | DHR |
SMDJ180A | SMDJ180CA | 180 | 201 | 222 | 1 | 292 | 10.3 | 1 | PHT | DHT |
SMDJ190A | SMDJ190CA | 190 | 211 | 234 | 1 | 307 | 9.7 | 1 | PHB | DHU |
SMDJ200A | SMDJ200CA | 200 | 224 | 247 | 1 | 324 | 9.3 | 1 | PHV | DHV |
SMDJ210A | SMDJ210CA | 210 | 233 | 258 | 1 | 337 | 8.8 | 1 | PHW | DHW |
SMDJ220A | SMDJ220CA | 220 | 246 | 272 | 1 | 356 | 8.4 | 1 | PKE | DKE |
SMDJ250A | SMDJ250CA | 250 | 279 | 309 | 1 | 405 | 7.4 | 1 | PKG | DKG |
SMDJ300A | SMDJ300CA | 300 | 335 | 371 | 1 | 486 | 6.1 | 1 | PKI | DKI |
SMDJ350A | SMDJ350CA | 350 | 391 | 432 | 1 | 567 | 5.3 | 1 | PKJ | DKJ |
SMDJ400A | SMDJ400CA | 400 | 447 | 494 | 1 | 648 | 4.6 | 1 | PKL | DKL |
SMDJ440A | SMDJ440CA | 440 | 492 | 543 | 1 | 713 | 4.2 | 1 | PKN | DKN |
