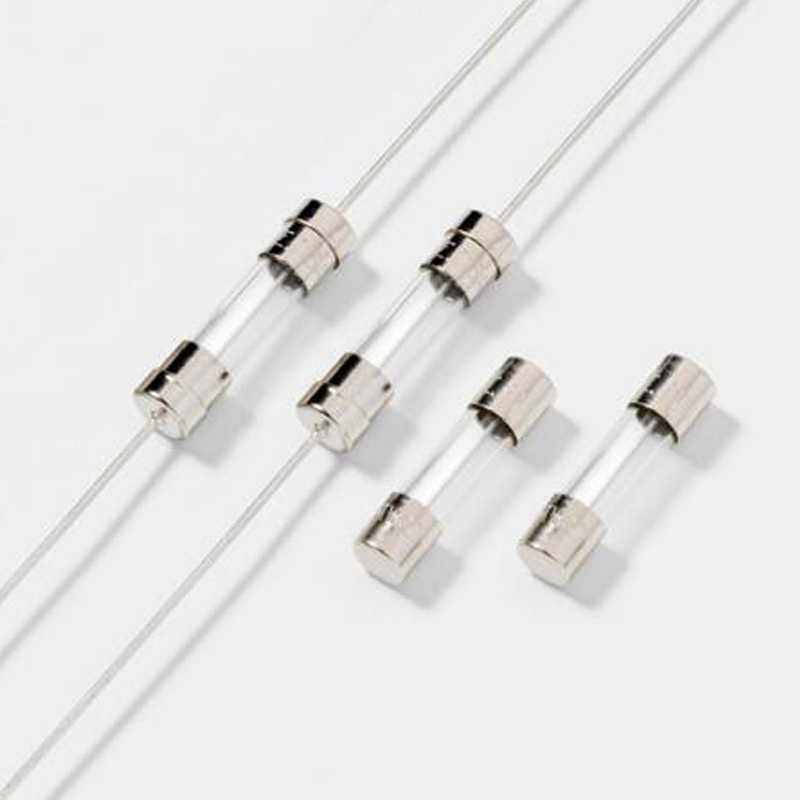

力特0217系列玻璃保險管
力特5x20mm快斷玻璃保險絲，以IEC標準設計按照國際標準（IEC）設計，全球通用 符合IEC 60127-2，符合RoHS和無鉛
- 品牌： 力特/littelfuse
- 分類： 玻璃保險管
- 最大電壓： 250V
- 額定電流： 0.032A-15A
Littelfuse_217規格書
AmpCode | Amp Rating (A) | Voltage Rating (V) | Interrupting Rating | Nominal Cold Resistance(Ohms) | Nominal Melting I2t (A2sec) | Maximum Voltage Drop at Rated Current(mV) | Maximum Power Dissipation At 1.5In(W) |
.032 | 0.032 | 250 | 35A@250VAC | 262.2000 | 0.00015 | 10000 | 1.6 |
.040 | 0.04 | 250 | 183.1500 | 0.00008 | 8000 | 1.6 | |
.050 | 0.05 | 250 | 15.2000 | 0.00049 | 7000 | 1.6 | |
.063 | 0.063 | 250 | 10.4500 | 0.00056 | 5000 | 1.6 | |
.080 | 0.08 | 250 | 7.8900 | 0.00132 | 4000 | 1.6 | |
.100 | 0.1 | 250 | 5.6965 | 0.00260 | 3500 | 1.6 | |
.125 | 0.125 | 250 | 3.8200 | 0.00478 | 2000 | 1.6 | |
.160 | 0.16 | 250 | 2.5250 | 0.01000 | 2000 | 1.6 | |
.200 | 0.2 | 250 | 1.7000 | 0.02000 | 1700 | 1.6 | |
.250 | 0.25 | 250 | 1.2325 | 0.04000 | 1400 | 1.6 | |
.315 | 0.315 | 250 | 0.8800 | 0.11000 | 1300 | 1.6 | |
.400 | 0.4 | 250 | 0.2770 | 0.12500 | 1200 | 1.6 | |
.500 | 0.5 | 250 | 0.2065 | 0.21500 | 1000 | 1.6 | |
.630 | 0.63 | 250 | 0.1900 | 0.41000 | 650 | 1.6 | |
.800 | 0.8 | 250 | 0.1203 | 0.85000 | 240 | 1.6 | |
001. | 1 | 250 | 0.0964 | 1.04500 | 200 | 1.6 | |
1.25 | 1.25 | 250 | 0.0701 | 2.23000 | 200 | 1.6 | |
01.6 | 1.6 | 250 | 0.0528 | 4.61500 | 190 | 1.6 | |
002. | 2 | 250 | 0.0416 | 5.73000 | 170 | 1.6 | |
02.5 | 2.5 | 250 | 0.0334 | 9.46000 | 170 | 1.6 | |
3.15 | 3.15 | 250 | 0.0224 | 17.72000 | 150 | 2.5 | |
004. | 4 | 250 | 40A@250VAC | 0.0165 | 29.16500 | 130 | 2.5 |
005. | 5 | 250 | 50A@250VAC | 0.0137 | 42.79500 | 130 | 2.5 |
06.3 | 6.3 | 250 | 63A@250VAC | 0.0095 | 62.46500 | 130 | 2.5 |
008. | 8 | 250 | 80A@250VAC | 0.0068 | 198.16000 | 130 | 4 |
010. | 10 | 250 | 100A@250VAC | 0.0063 | 217.63500 | 130 | 4 |
015. | 15 | 250 | 150A@250VAC | 0.0040 | 607.13500 | 130 | 4 |
