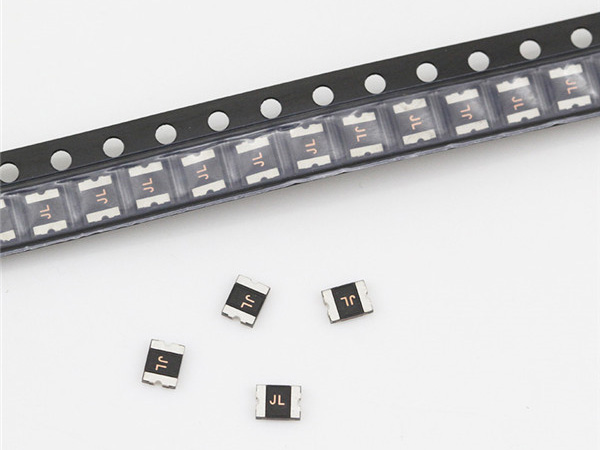

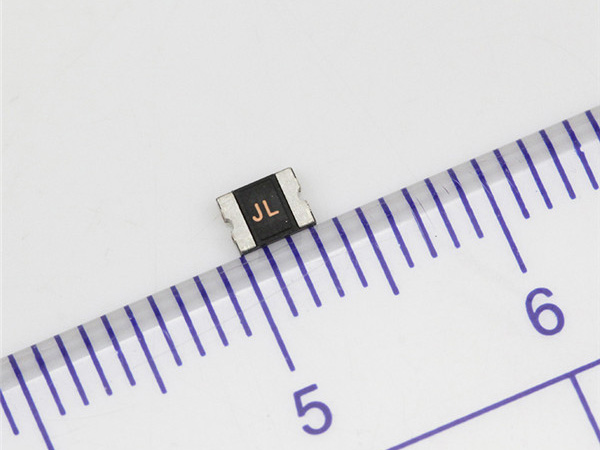

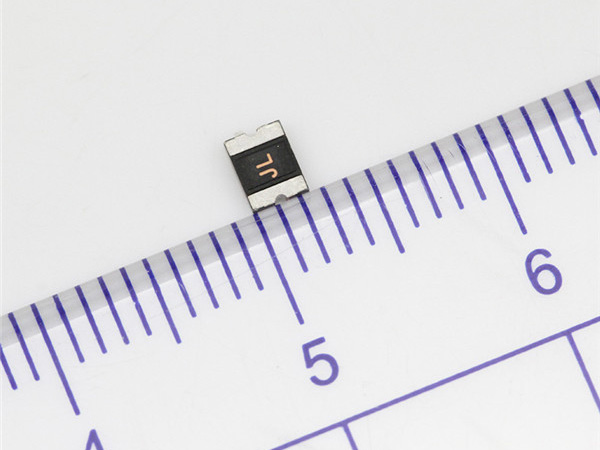

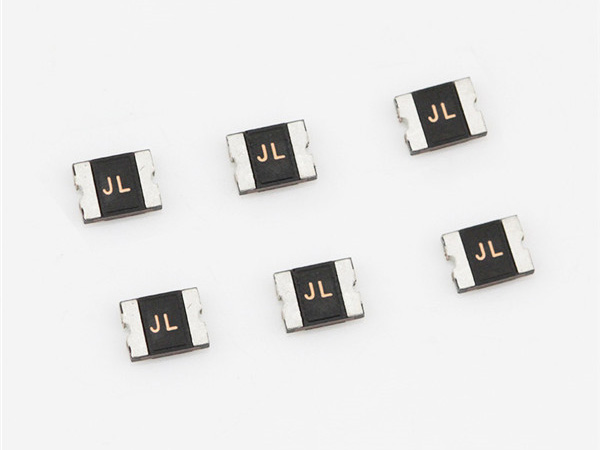

            1210SL系列低內阻自恢復保險絲


            ASMD1210SL系列提供表面貼裝可復位過流保護，保持電流范圍為1.5A至7.5A。 該系列廣泛應用于空間有限的現代電子產品。




            •
                                            品牌：
                                            集電通/JDTFUSE
              •

            •
                                            分類：
                                            貼片自恢復保險絲
              •

            •
                                            最大電壓：
                                            6V-12V
              •

            •
                                            額定電流：
                                            1.5~7.5A
              •




































            JDTFUSEASMD1210SL規格書
            JDTFUSE
            電氣特性25℃
            Model
            Vmax
            (Vdc)
            Imax
            (A)
            Ihold
            @25℃
            (A)
            Itrip
            @25℃
            (A)
            Pd
             typ.
             (W)
            Maximum Time
            To Trip

            Resistance
            Current
             (A)
            Time
            (Sec.)
            Rimin
             (Ω)
            R1max
             (Ω)
            ASMD1210SL150
            6
            50
            1.50
            3.0
            0.8
            8.0
            2.0
            0.010
            0.060
            ASMD1210SL150-12V
            12
            50
            1.50
            3.0
            0.8
            8.0
            2.0
            0.010
            0.060
            ASMD1210SL175
            6
            50
            1.75
            3.5
            0.8
            8.0
            2.0
            0.005
            0.040
            ASMD1210SL175-12V
            12
            50
            1.75
            3.5
            0.8
            8.0
            2.0
            0.005
            0.040
            ASMD1210SL190
            6
            50
            1.90
            3.8
            0.8
            8.0
            3.0
            0.006
            0.037
            ASMD1210SL190-12V
            12
            50
            1.90
            3.8
            0.8
            8.0
            3.0
            0.006
            0.037
            ASMD1210SL200
            6
            50
            2.00
            4.0
            0.8
            8.0
            3.0
            0.006
            0.035
            ASMD1210SL200-12V
            12
            50
            2.00
            4.0
            0.8
            8.0
            3.0
            0.006
            0.035
            ASMD1210SL260
            6
            50
            2.60
            5.2
            0.8
            13.0
            2.0
            0.003
            0.025
            ASMD1210SL260-12V
            12
            50
            2.6
            5.2
            0.8
            13.0
            2.0
            0.003
            0.025
            ASMD1210SL300
            6
            50
            3.0
            6.0
            0.8
            15.0
            2.0
            0.003
            0.020
            ASMD1210SL300-12V
            12
            50
            3.0
            6.0
            0.8
            15.0
            2.0
            0.003
            0.020
            ASMD1210SL350
            6
            50
            3.5
            7.0
            0.8
            17.5
            2.0
            0.002
            0.018
            ASMD1210SL350-12V
            12
            50
            3.5
            7.0
            0.8
            17.5
            2.0
            0.002
            0.018
            ASMD1210SL380
            6
            50
            3.8
            7.6
            0.8
            19.0
            2.0
            0.002
            0.016
            ASMD1210SL380-12V
            12
            50
            3.8
            7.6
            0.8
            19.0
            2.0
            0.002
            0.016
            ASMD1210SL400
            6
            50
            4.0
            8.0
            0.8
            20.0
            2.0
            0.002
            0.014
            ASMD1210SL400-12V
            12
            50
            4.0
            8.0
            0.8
            20.0
            2.0
            0.002
            0.014
            ASMD1210SL450
            6
            50
            4.5
            9.0
            1.0
            22.5
            2.0
            0.001
            0.013
            ASMD1210SL450-12V
            12
            50
            4.5
            9.0
            1.0
            22.5
            2.0
            0.001
            0.013
            ASMD1210SL500
            6
            50
            5.0
            10
            1.0
            25.0
            2.0
            0.001
            0.012
            ASMD1210SL500-12V
            12
            50
            5.0
            10
            1.0
            25.0
            2.0
            0.001
            0.012
            ASMD1210SL550
            6
            50
            5.5
            11
            1.0
            27.5
            2.0
            0.001
            0.011
            ASMD1210SL550-12V
            12
            50
            5.5
            11
            1.0
            27.5
            2.0
            0.001
            0.011
            ASMD1210SL600
            6
            50
            6.0
            12
            1.2
            30.0
            2.0
            0.001
            0.010
            ASMD1210SL600-12V
            12
            50
            6.0
            12
            1.2
            30.0
            2.0
            0.001
            0.010
            ASMD1210SL650
            6
            50
            6.5
            13
            1.2
            32.5
            2.0
            0.001
            0.009
            ASMD1210SL650-12V
            12
            50
            6.5
            13
            1.2
            32.5
            2.0
            0.001
            0.009
            ASMD1210SL700
            6
            50
            7.0
            14
            1.2
            35.0
            2.0
            0.001
            0.008
            ASMD1210SL700-12V
            12
            50
            7.0
            14
            1.2
            35.0
            2.0
            0.001
            0.008
            ASMD1210SL750
            6
            50
            7.5
            15
            1.2
            37.5
            2.0
            0.001
            0.007
            ASMD1210SL750-12V
            12
            50
            7.5
            15
            1.2
            37.5
            2.0
            0.001
            0.007
            V max  = 元件在額定電流下能承受的最大電壓.
            I max =元件在額定電壓下能承受的最大電流.
            I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
            I trip    = 在25℃靜止空氣環境中,最小動作電流.
            Pd      =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.（推薦閱讀：1206SL系列低阻自恢復保險絲）
            Ri min/max  =25℃溫度條件下的初始阻值(焊接前).
            R1max  = 25℃溫度條件下,焊接一小時後的最大阻值.
            注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.

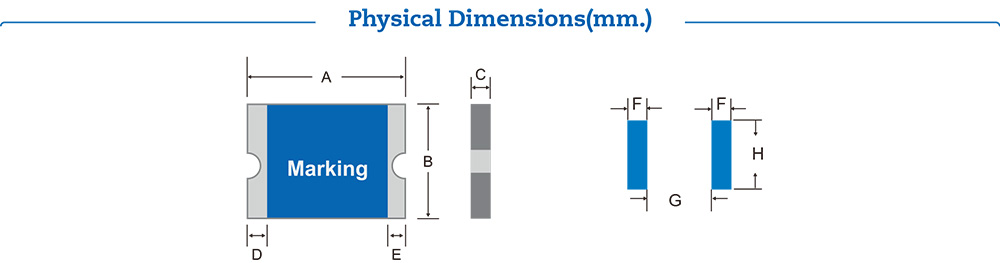

            JDTFUSE

            Model
            A
            B
            C
            D
            E
            Min.
            Max.
            Min.
            Max.
            Min.
            Max.
            Min.
            Min.
            ASMD1210SL150
            3.0
            3.43
            2.35
            2.8
            0.3
            0.7
            0.25
            0.1
            ASMD1210SL175
            3.0
            3.43
            2.35
            2.8
            0.3
            0.7
            0.25
            0.1
            ASMD1210SL190
            3.0
            3.43
            2.35
            2.8
            0.3
            0.7
            0.25
            0.1
            ASMD1210SL200
            3.0
            3.43
            2.35
            2.8
            0.3
            0.7
            0.25
            0.1
            ASMD1210SL260
            3.0
            3.43
            2.35
            2.8
            0.4
            1.0
            0.25
            0.1
            ASMD1210SL300
            3.0
            3.43
            2.35
            2.8
            0.4
            1.0
            0.25
            0.1
            ASMD1210SL350
            3.0
            3.43
            2.35
            2.8
            0.4
            1.2
            0.25
            0.1
            ASMD1210SL380
            3.0
            3.43
            2.35
            2.8
            0.4
            1.2
            0.25
            0.1
            ASMD1210SL400
            3.0
            3.43
            2.35
            2.8
            0.5
            1.2
            0.25
            0.1
            ASMD1210SL450
            3.0
            3.43
            2.35
            2.8
            0.5
            1.4
            0.25
            0.1
            ASMD1210SL500
            3.0
            3.43
            2.35
            2.8
            0.5
            1.4
            0.25
            0.1
            ASMD1210SL550
            3.0
            3.43
            2.35
            2.8
            0.5
            1.4
            0.25
            0.1
            ASMD1210SL600
            3.0
            3.43
            2.35
            2.8
            0.5
            1.6
            0.25
            0.1
            ASMD1210SL650
            3.0
            3.43
            2.35
            2.8
            0.5
            1.6
            0.25
            0.1
            ASMD1210SL700
            3.0
            3.43
            2.35
            2.8
            0.5
            1.6
            0.25
            0.1
            ASMD1210SL750
            3.0
            3.43
            2.35
            2.8
            0.5
            1.6
            0.25
            0.1







            JDTFUSEREACH報告
            JDTFUSERoHS報告
            JDTFUSEUL認證
