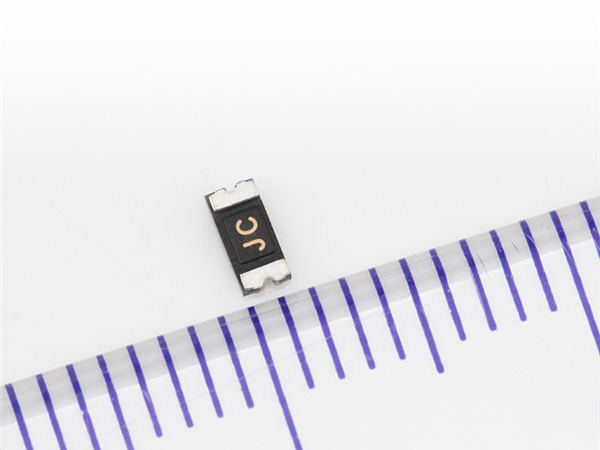

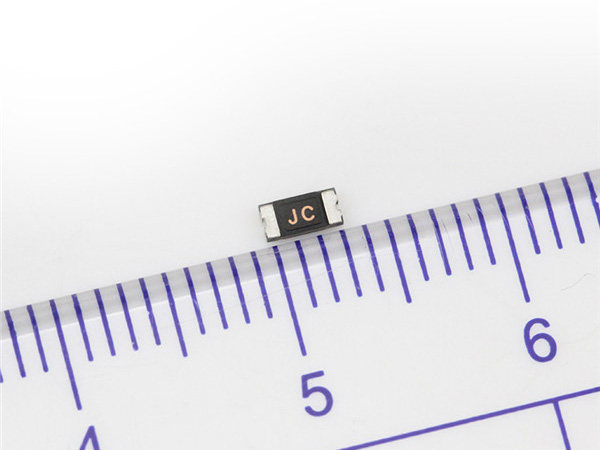

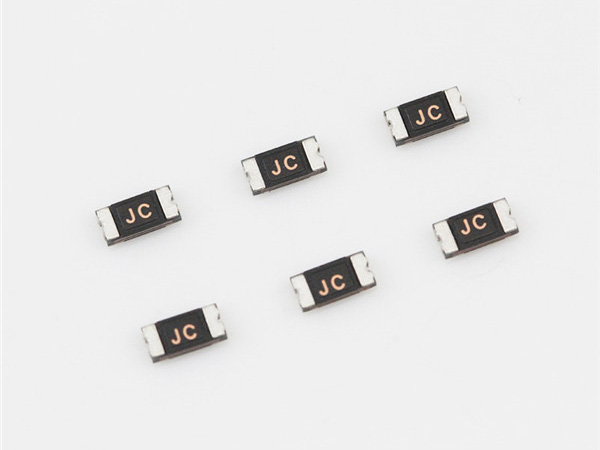

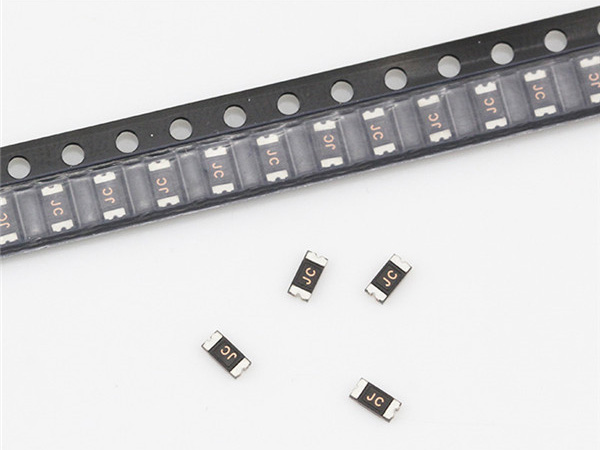

1206SL系列低內阻自恢復保險絲
ASMD1206SL系列提供微型表面貼裝過流保護，保持電流范圍為1.5-6A。 該系列適廣泛應用于空間有限的現代電子產品中。
- 品牌： 集電通/JTDFUSE
- 分類： 貼片自恢復保險絲
- 最大電壓： 6-12V
- 額定電流： 1.5~6A
ASMD1206SL規格書
電氣特性25℃
Model | Vmax (Vdc) | Imax (A) | Ihold @25℃ (A) | Itrip @25℃ (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
ASMD1206SL150 | 6 | 50 | 1.50 | 3.0 | 0.8 | 8.0 | 5.0 | 0.010 | 0.065 |
ASMD1206SL150-12V | 12 | 50 | 1.50 | 3.0 | 0.8 | 8.0 | 5.0 | 0.010 | 0.065 |
ASMD1206SL175 | 6 | 50 | 1.75 | 3.5 | 0.8 | 8.0 | 5.0 | 0.010 | 0.060 |
ASMD1206SL175-12V | 12 | 50 | 1.75 | 3.5 | 0.8 | 8.0 | 5.0 | 0.010 | 0.060 |
ASMD1206SL200 | 6 | 50 | 2.00 | 4.0 | 0.8 | 8.0 | 5.0 | 0.008 | 0.040 |
ASMD1206SL200-12V | 12 | 50 | 2.00 | 4.0 | 0.8 | 8.0 | 5.0 | 0.008 | 0.040 |
ASMD1206SL260 | 6 | 50 | 2.60 | 5.2 | 0.8 | 8.0 | 5.0 | 0.004 | 0.026 |
ASMD1206SL260-12V | 12 | 50 | 2.6 | 5.2 | 0.8 | 8.0 | 5.0 | 0.004 | 0.026 |
ASMD1206SL300 | 6 | 50 | 3.0 | 6.0 | 0.8 | 15.0 | 2.0 | 0.004 | 0.020 |
ASMD1206SL300-12V | 12 | 50 | 3.0 | 6.0 | 0.8 | 15.0 | 2.0 | 0.004 | 0.020 |
ASMD1206SL350 | 6 | 50 | 3.5 | 7.0 | 1.0 | 17.5 | 2.0 | 0.004 | 0.018 |
ASMD1206SL350-12V | 12 | 50 | 3.5 | 7.0 | 1.0 | 17.5 | 2.0 | 0.004 | 0.018 |
ASMD1206SL380 | 6 | 50 | 3.8 | 7.6 | 1.0 | 19.0 | 2.0 | 0.004 | 0.016 |
ASMD1206SL380-12V | 12 | 50 | 3.8 | 7.6 | 1.0 | 19.0 | 2.0 | 0.004 | 0.016 |
ASMD1206SL400 | 6 | 50 | 4.0 | 8.0 | 1.0 | 20.0 | 2.0 | 0.004 | 0.014 |
ASMD1206SL400-12V | 12 | 50 | 4.0 | 8.0 | 1.0 | 20.0 | 2.0 | 0.004 | 0.014 |
ASMD1206SL450 | 6 | 50 | 4.5 | 9.0 | 1.0 | 22.5 | 2.0 | 0.002 | 0.012 |
ASMD1206SL450-12V | 12 | 50 | 4.5 | 9.0 | 1.0 | 22.5 | 2.0 | 0.002 | 0.012 |
ASMD1206SL500 | 6 | 50 | 5.0 | 10 | 1.0 | 25.0 | 2.0 | 0.002 | 0.011 |
ASMD1206SL500-12V | 12 | 50 | 5.0 | 10 | 1.0 | 25.0 | 2.0 | 0.002 | 0.011 |
ASMD1206SL550 | 6 | 50 | 5.5 | 11 | 1.2 | 27.5 | 2.0 | 0.002 | 0.010 |
ASMD1206SL550-12V | 12 | 50 | 5.5 | 11 | 1.2 | 27.5 | 2.0 | 0.002 | 0.010 |
ASMD1206SL600 | 6 | 50 | 6.0 | 12 | 1.2 | 30.0 | 2.0 | 0.002 | 0.009 |
ASMD1206SL600-12V | 12 | 50 | 6.0 | 12 | 1.2 | 30.0 | 2.0 | 0.002 | 0.009 |
ASMD1206SL650 | 6 | 50 | 6.5 | 13 | 1.5 | 32.5 | 2.0 | 0.002 | 0.009 |
ASMD1206SL650-12V | 12 | 50 | 6.5 | 13 | 1.5 | 32.5 | 2.0 | 0.002 | 0.009 |
ASMD1206SL700 | 6 | 50 | 7.0 | 14 | 15 | 35.0 | 2.0 | 0.001 | 0.008 |
ASMD1206SL700-12V | 12 | 50 | 7.0 | 14 | 1.5 | 35.0 | 2.0 | 0.001 | 0.008 |
ASMD1206SL750 | 6 | 50 | 7.5 | 15 | 1.5 | 35.0 | 5.0 | 0.001 | 0.007 |
ASMD1206SL750-12V | 12 | 50 | 7.5 | 15 | 1.5 | 35.0 | 5.0 | 0.001 | 0.007 |
Model | A | B | C | D | E | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| ASMD1206SL110 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL150 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL175 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL200 | 3.0 | 3.5 | 1.5 | 1.8 | 0.3 | 0.7 | 0.15 | 0.1 |
| ASMD1206SL260 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.0 | 0.15 | 0.1 |
| ASMD1206SL300 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL350 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL380 | 3.0 | 3.5 | 1.5 | 1.8 | 0.4 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL400 | 3.0 | 3.5 | 1.5 | 1.8 | 0.5 | 1.2 | 0.15 | 0.1 |
| ASMD1206SL450 | 3.0 | 3.5 | 1.5 | 1.8 | 0.5 | 1.4 | 0.15 | 0.1 |
| ASMD1206SL500 | 3.0 | 3.5 | 1.5 | 1.8 | 0.5 | 1.4 | 0.15 | 0.1 |
| ASMD1206SL550 | 3.0 | 3.5 | 1.5 | 1.8 | 0.6 | 1.6 | 0.15 | 0.1 |
| ASMD1206SL600 | 3.0 | 3.5 | 1.5 | 1.8 | 0.6 | 1.6 | 0.15 | 0.1 |
| ASMD1206SL650 | 3.0 | 3.5 | 1.5 | 1.8 | 0.8 | 1.6 | 0.15 | 0.1 |
| ASMD1206SL700 | 3.0 | 3.5 | 1.5 | 1.8 | 0.8 | 1.6 | 0.15 | 0.1 |
