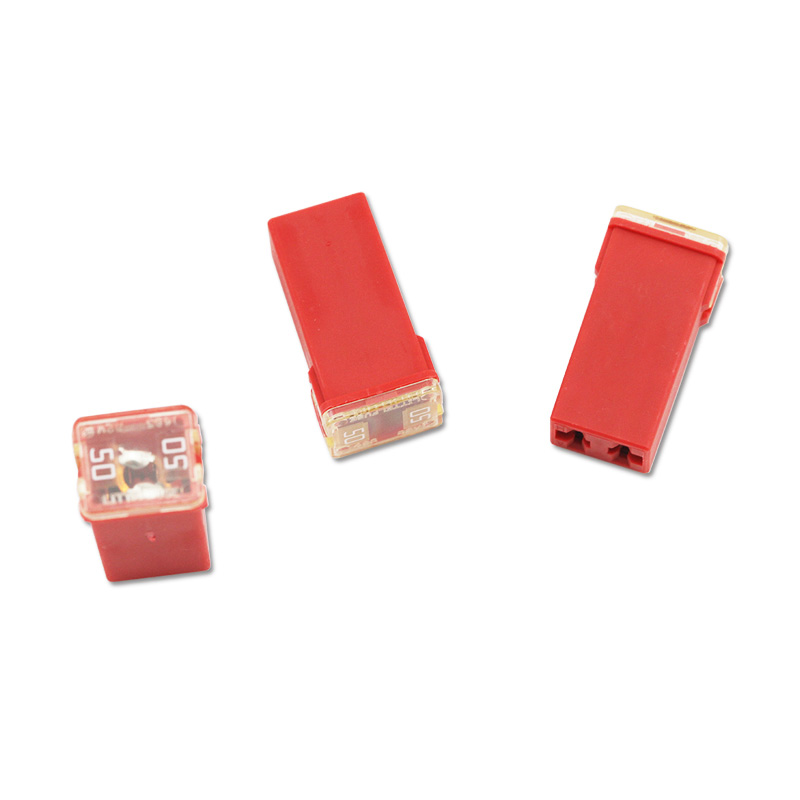

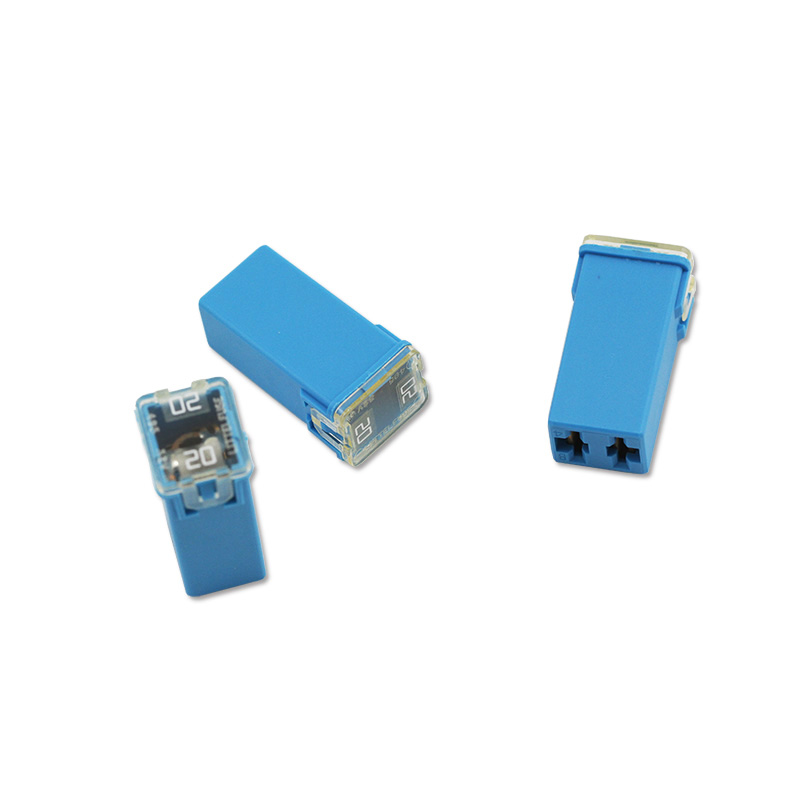

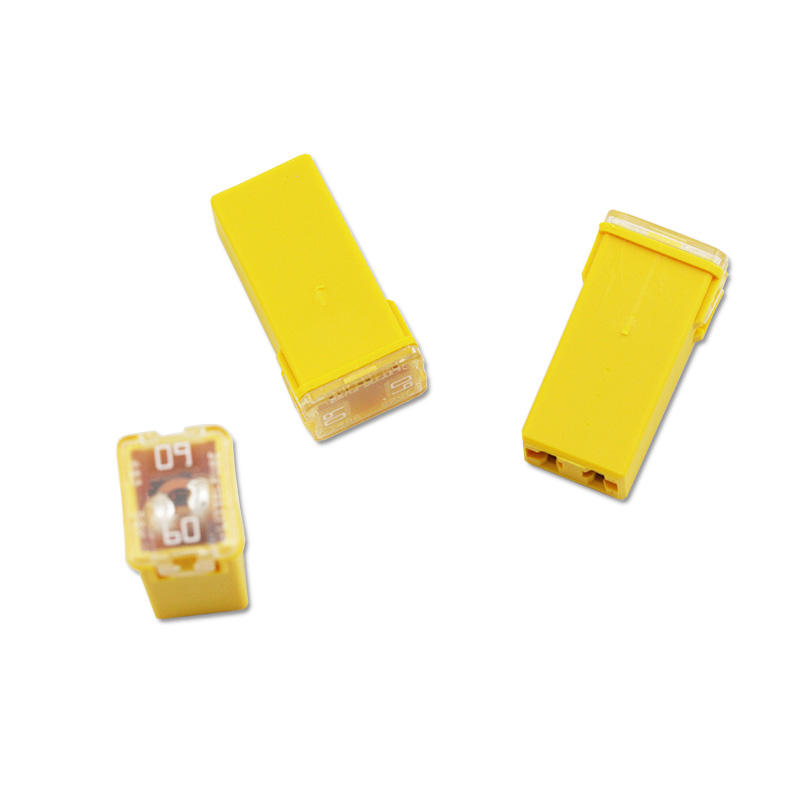

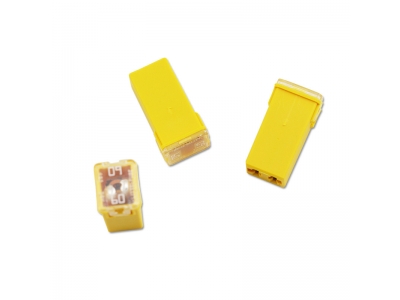

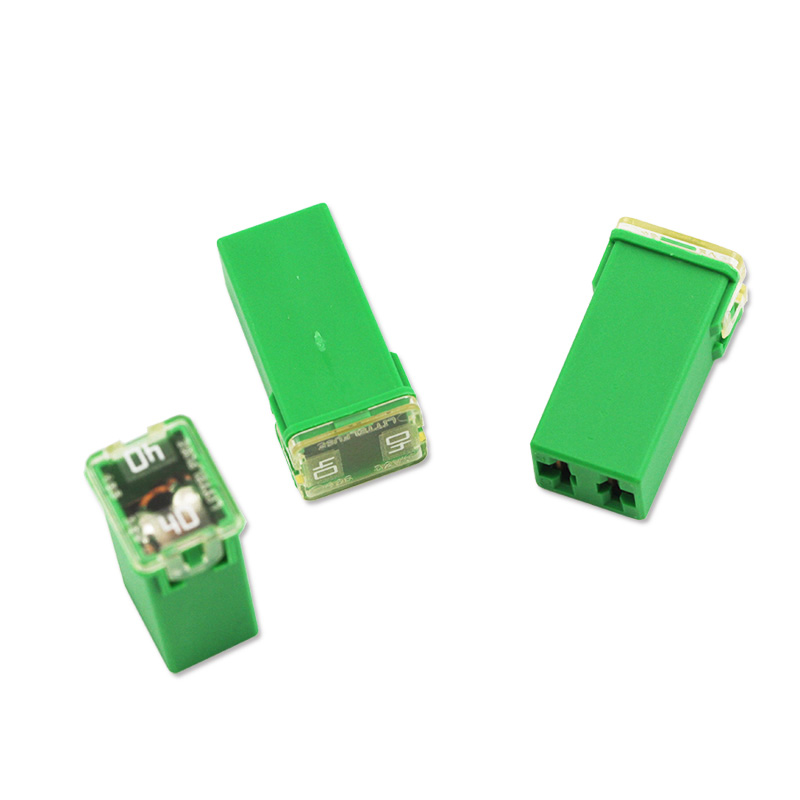

            Littelfuse 0495  Series Car Fuse


            The JCASE? is a cartridge style fuse with female terminal design, providing both increased time delay and low voltage drop to protect high current circuits and handle inrush currents.




            •
                                            Brand：
                                            Littelfuse
              •

            •
                                            Classification：
                                            Car Fuse
              •

            •
                                            Voltage：
                                            32VDC
              •

            •
                                            Current：
                                            20~60A
              •




































            Interrupting Rating:1000A @ 32 VDC
            Voltage Rating: 32VDC
            Operating Temperature Range：-40 ?C to +125 ?C

            Part NumberCurrent Rating
            (A)            		Test. Cable
             Size(mm2)            		Typ. Voltage
            Drop(mV)            		Typ. Cold Resistance
            (mΩ)            		Typ.I2t(A2s)
            0495020._2041064.291700
            0495025._2541013.283200
            0495030._304912.121500
            0495040._354871.303700
            0495050._406880.998800
            0495060._506870.7619500






            JDTFUSE
