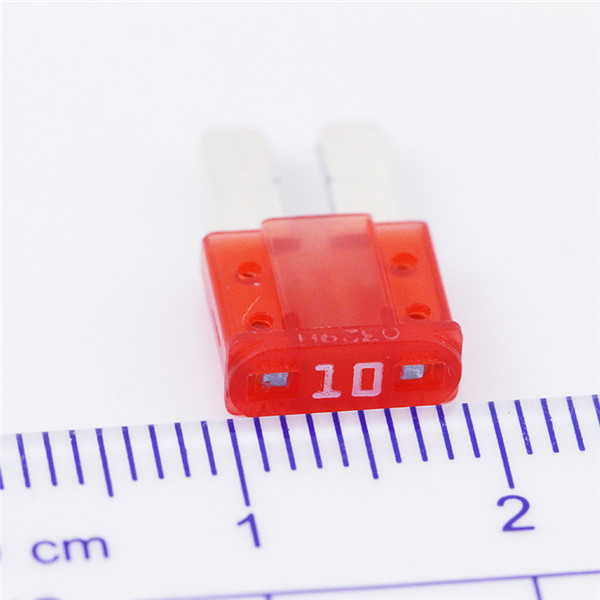

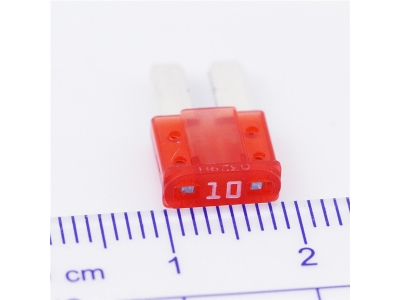

Littelfuse 0327 Series Car Fuse

The MICRO2 Fuse is the new standard for vehicle circuit protection. Its sub-miniature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO2 Fuse the recommended choice for protection.

Brand： Littelfuse
Classification： Car Fuse
Voltage： 32V
Current： 3A~30A

Detail Specification

Details

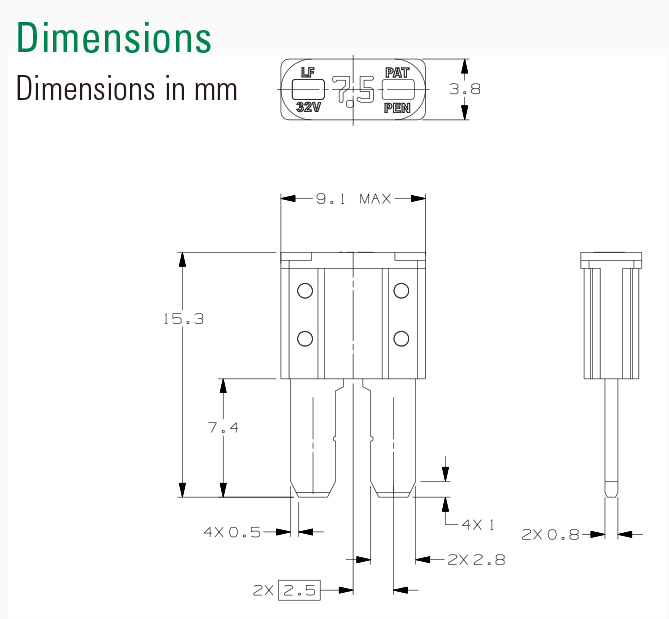

Dimension

Interrupting Ratings::1000A @ 32 VDC

Voltage Rating: 32VDC

Component Level Temperature Range: -40 ?C to +125 ?C

ystem Level Temperature Range: -40 ?C to +105 ?C

Part Number	Current Rating (A)	Test. Cable Size(mm2)	Typ. Voltage Drop(mV)	Typ. Cold Resistance (mΩ)	Typ.I2t(A2s)
0327003._	3	0.35	113	31.7	9

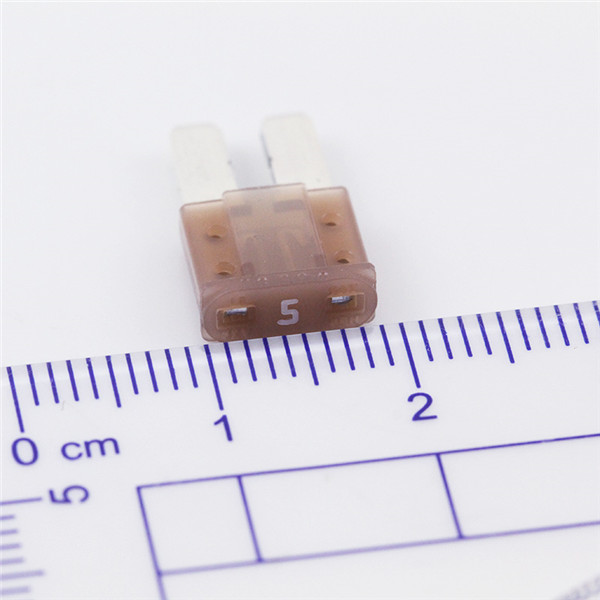

0327005._	5	0.5	116	17.4	17

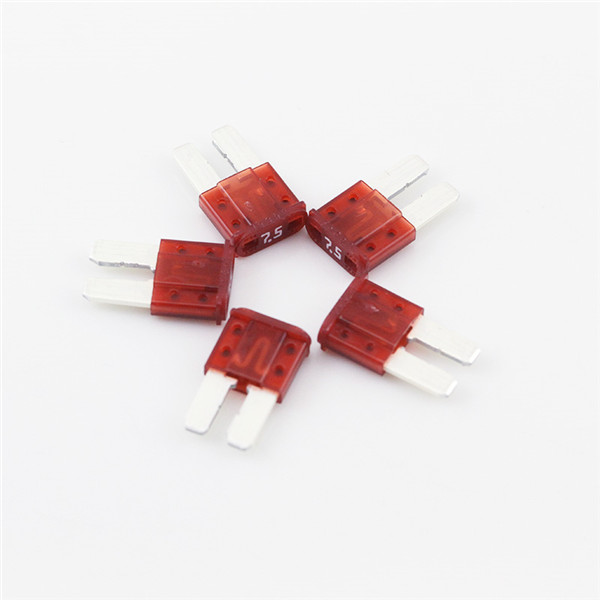

032707.5_	7.5	0.75	106	10.8	47
0327010._	10	1	102	7.7	90
0327015._	15	1.5	94	4.9	190

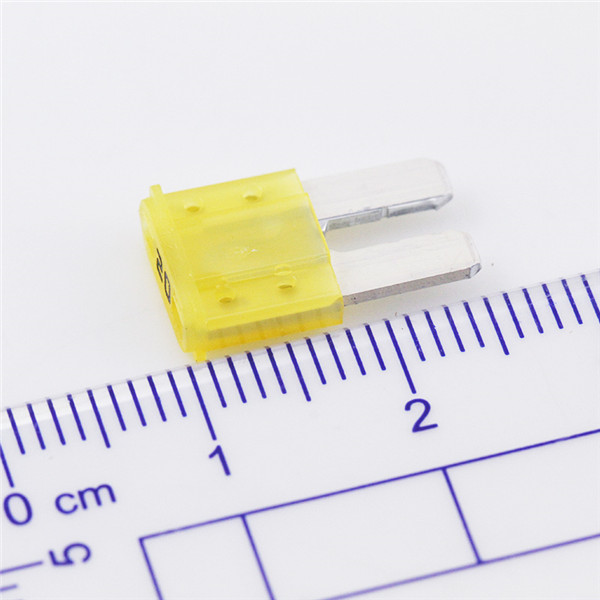

0327020._	20	2.5	91	3.5	400
0327025._	25	2.5	90	2.6	580
0327030._	30	4	88	2.1	1000
