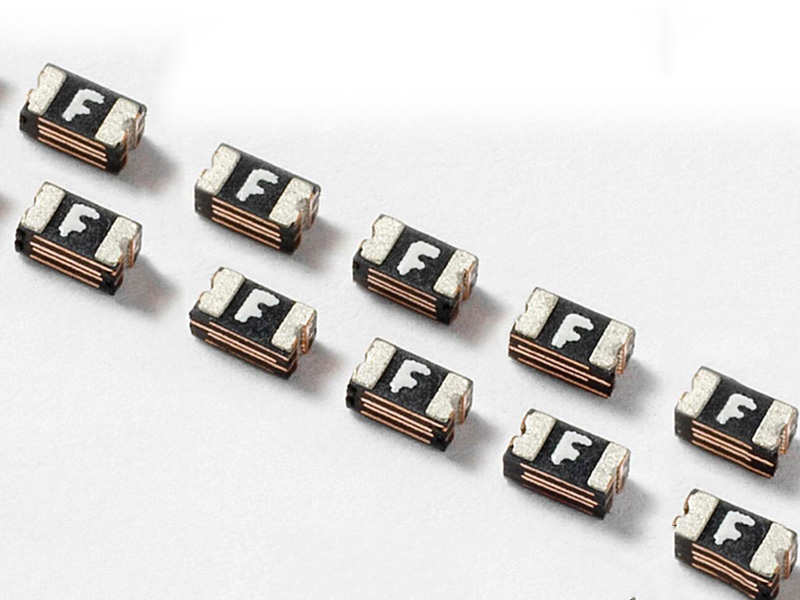

            Littelfuse 0603L Series PTC


            The 0603L Series PTC provides surface mount
            overcurrent protection for applications where space is at a premium and resettable protection is desired.




            •
                                            Brand：
                                            Littelfuse
              •

            •
                                            Classification：
                                            SMD Fuse
              •

            •
                                            Voltage：
                                            6V,9V,15V,24V
              •

            •
                                            Current：
                                            6V,9V,15V,24V
              •




































            0603L Series Electrical Characteristics
            Part Number
            Marking
            Ihold
             (A)
            Itrip
             (A)
            Vmax
             (Vdc)
            Imax
             (A)
            Pdtyp.
             (W)
            Maximum Time
             To Trip
            Resistance
            Current
            (A)
            Time
             (Sec.)
            Rmin
             (Ω)
            R1max
             (Ω)
            0603L004
            -
            0.04
            0.12
            24
            20
            0.5
            0.20
            1.00
            4.00
            40.00
            0603L010
            C
            0.10
            0.30
            15
            40
            0.5
            0.50
            1.00
            0.900
            6.000
            0603L020
            H
            0.20
            0.50
            9
            40
            0.5
            1.00
            0.60
            0.550
            3.500
            0603L025
            I
            0.25
            0.55
            9
            40
            0.5
            8.00
            0.08
            0.500
            3.000
            0603L035
            F
            0.35
            0.75
            6
            40
            0.5
            8.00
            0.10
            0.200
            1.000
            0603L050
            J
            0.50
            1.00
            6
            40
            0.5
            8.00
            0.10
            0.100
            0.680

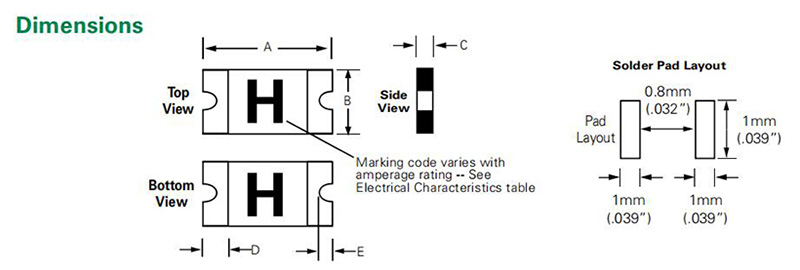

            JDTFUSE

            Part Number
            A
            B
            C
            D
            E
            Inch
            mm
            Inch
            mm
            Inch
            mm
            Inch
            mm
            Inch
            mm
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            0603L001/60
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .016
            .039
            0.40
            1.00
            .006
            .020
            0.15
            0.50
            -
            .016
            -
            0.40
            0603L002/60
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .016
            .039
            0.40
            1.00
            .006
            .020
            0.15
            0.50
            -
            .016
            -
            0.40
            0603L003/36
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .016
            .039
            0.40
            1.00
            .006
            .020
            0.15
            0.50
            -
            .016
            -
            0.40
            0603L004
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .016
            .030
            0.40
            0.75
            .006
            .020
            0.15
            0.50
            .004
            .016
            0.10
            0.40
            0603L010
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .016
            .030
            0.40
            0.75
            .006
            .020
            0.15
            0.50
            .004
            .016
            0.10
            0.40
            0603L020
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .016
            .030
            0.40
            0.75
            .006
            .020
            0.15
            0.50
            .004
            .016
            0.10
            0.40
            0603L025
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .016
            .030
            0.40
            0.75
            .006
            .020
            0.15
            0.50
            .004
            .016
            0.10
            0.40
            0603L035
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .030
            .061
            0.75
            1.55
            .006
            .020
            0.15
            0.50
            .004
            .016
            0.10
            0.40
            0603L050
            .055
            .071
            1.40
            1.80
            .024
            .039
            0.60
            1.00
            .030
            .061
            0.75
            1.55
            .006
            .020
            0.15
            0.50
            .004
            .016
            0.10
            0.40
