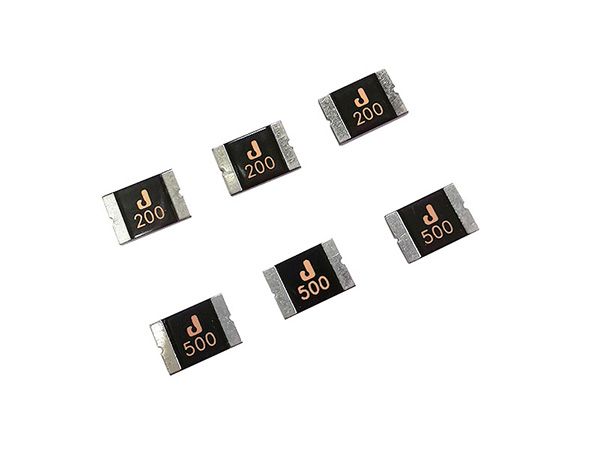

            ASMD2920 PPTC Resettable Fuse


            The ASMD2920 series provides surface mount
            resettable overcurrent protection with holding current from 0.3A to 7.0A.
            This series is suitable for applications with higher holding current and higher working voltage up to 60V.




            •
                                            Brand：
                                            JDT FUSE
              •

            •
                                            Classification：
                                            SMD PTC
              •

            •
                                            Voltage：
                                            6V-60V
              •

            •
                                            Current：
                                            0.3A-3A
              •




































            Electrical properties

            Part No.
            Vmax
            (Vdc)
            Imax
            (A)
            Ihold
            @25℃
            (A)
            Itrip
            @25℃
            (A)
            Pd
            (W)
            Maximum Time
            To Trip
            Resistance
            Current
            (A)
            Time
            (Sec.)
            Rimin
            (Ω)
            R1max
            (Ω)
            ASMD2920-030
            60
            100
            0.30
            0.60
            1.5
            1.5
            3.0
            0.600
            4.800
            ASMD2920-050
            60
            100
            0.50
            1.00
            1.5
            2.5
            4.0
            0.180
            1.400
            ASMD2920-075
            33
            100
            0.75
            1.50
            1.5
            8.0
            0.3
            0.100
            1.000
            ASMD2920-075-60V
            60
            100
            0.75
            1.50
            1.5
            8.0
            0.3
            0.100
            1.000
            ASMD2920-100
            33
            100
            1.00
            2.00
            1.5
            8.0
            0.5
            0.065
            0.410
            ASMD2920-100 -60V
            60
            100
            1.00
            2.00
            1.5
            8.0
            0.5
            0.065
            0.410
            ASMD2920-125
            33
            100
            1.25
            2.50
            1.5
            8.0
            2.0
            0.050
            0.250
            ASMD2920-150
            33
            100
            1.50
            3.00
            1.5
            8.0
            2.0
            0.035
            0.230
            ASMD2920-185
            33
            100
            1.85
            3.70
            1.5
            8.0
            2.5
            0.030
            0.150
            ASMD2920-200
            16
            100
            2.00
            4.00
            1.5
            8.0
            4.5
            0.020
            0.120
            ASMD2920-200-24V
            24
            100
            2.00
            4.00
            1.5
            8.0
            4.5
            0.020
            0.120
            ASMD2920-200-33V
            33
            100
            2.00
            4.00
            1.5
            8.0
            4.5
            0.020
            0.120
            ASMD2920-250
            16
            100
            2.50
            5.00
            1.5
            8.0
            16.0
            0.020
            0.085
            ASMD2920-250-24V
            24
            100
            2.50
            5.00
            1.5
            8.0
            16.0
            0.020
            0.085
            ASMD2920-260
            6
            100
            2.60
            5.20
            1.5
            8.0
            10.0
            0.014
            0.075
            ASMD2920-260-16V
            16
            100
            2.60
            5.20
            1.5
            8.0
            10.0
            0.014
            0.075
            ASMD2920-300
            6
            40
            3.00
            6.00
            1.5
            8.0
            20.0
            0.012
            0.048
            ASMD2920-300-16V
            16
            40
            3.00
            6.00
            1.5
            8.0
            20.0
            0.012
            0.048
            ASMD2920-300-30V
            30
            40
            3.00
            6.00
            1.5
            8.0
            20.0
            0.012
            0.048
            ASMD2920-400
            16
            40
            4.00
            8.00
            1.5
            20.0
            4.0
            0.008
            0.040
            ASMD2920-400-6V
            6
            40
            4.00
            8.00
            1.5
            20.0
            4.0
            0.008
            0.040
            ASMD2920-400-24V
            24
            40
            4.00
            8.00
            1.5
            20.0
            4.0
            0.008
            0.040
            ASMD2920-500
            6
            40
            5.00
            10.00
            1.5
            25.0
            5.0
            0.005
            0.031
            ASMD2920-500-12V
            12
            40
            5.00
            10.00
            1.5
            25.0
            5.0
            0.005
            0.031
            ASMD2920-500-16V
            16
            40
            5.00
            10.00
            1.5
            25.0
            5.0
            0.005
            0.031
            ASMD2920-600
            6
            40
            6.00
            12.00
            1.5
            25.0
            6.0
            0.004
            0.020
            ASMD2920-600-12V
            12
            40
            6.00
            12.00
            1.5
            25.0
            6.0
            0.004
            0.020
            ASMD2920-700
            6
            40
            7.00
            14.00
            1.5
            25.0
            6.0
            0.0025
            0.010
            ASMD2920-700-12V
            12
            40
            7.00
            14.00
            1.5
            25.0
            6.0
            0.0025
            0.010







            JDTFUSE

            Model
            A
            B
            C
            D
            E
            Min.
            Max.
            Min.
            Max.
            Min.
            Max.
            Min.
            Min.
            ASMD2920-030
            6.73
            7.98
            4.8
            5.44
            0.6
            1.2
            0.3
            0.25
            ASMD2920-050
            6.73
            7.98
            4.8
            5.44
            0.6
            1.2
            0.3
            0.25
            ASMD2920-075
            6.73
            7.98
            4.8
            5.44
            0.6
            1.3
            0.3
            0.25
            ASMD2920-100
            6.73
            7.98
            4.8
            5.44
            0.4
            1.0
            0.3
            0.25
            ASMD2920-100-60V
            6.73
            7.98
            4.8
            5.44
            1.0
            2.1
            0.3
            0.25
            ASMD2920-125
            6.73
            7.98
            4.8
            5.44
            0.4
            1.0
            0.3
            0.25
            ASMD2920-150
            6.73
            7.98
            4.8
            5.44
            0.5
            1.3
            0.3
            0.25
            ASMD2920-185
            6.73
            7.98
            4.8
            5.44
            0.6
            1.4
            0.3
            0.25
            ASMD2920-200
            6.73
            7.98
            4.8
            5.44
            0.6
            1.4
            0.3
            0.25
            ASMD2920-250
            6.73
            7.98
            4.8
            5.44
            0.6
            1.4
            0.3
            0.25
            ASMD2920-260
            6.73
            7.98
            4.8
            5.44
            0.6
            1.4
            0.3
            0.25
            ASMD2920-300
            6.73
            7.98
            4.8
            5.44
            0.6
            1.2
            0.3
            0.25
            ASMD2920-400
            6.73
            7.98
            4.8
            5.44
            0.6
            1.6
            0.3
            0.25
            ASMD2920-500
            6.73
            7.98
            4.8
            5.44
            0.6
            1.6
            0.3
            0.25
            ASMD2920-600
            6.73
            7.98
            4.8
            5.44
            0.6
            1.6
            0.3
            0.25
            ASMD2920-700
            6.73
            7.98
            4.8
            5.44
            0.6
            1.6
            0.3
            0.25







            JDTFUSEREACH
            JDTFUSERoHS
            JDTFUSEUL
