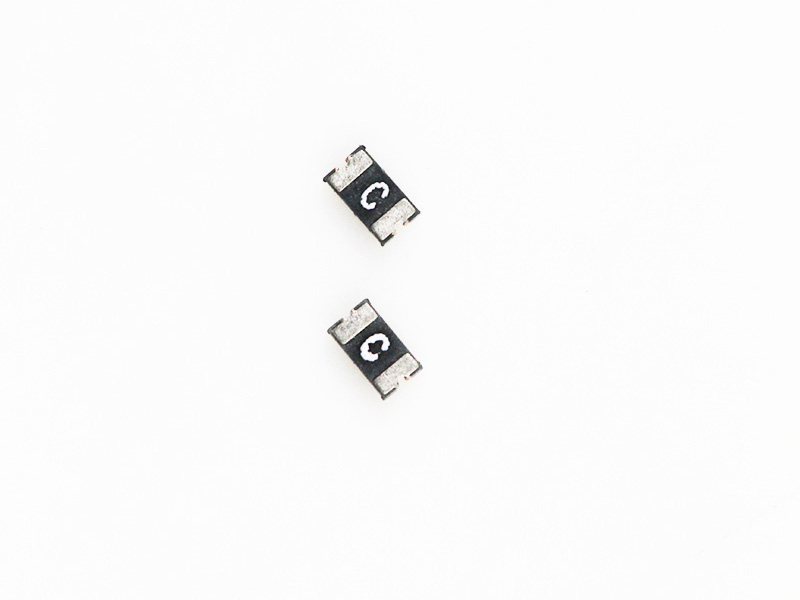

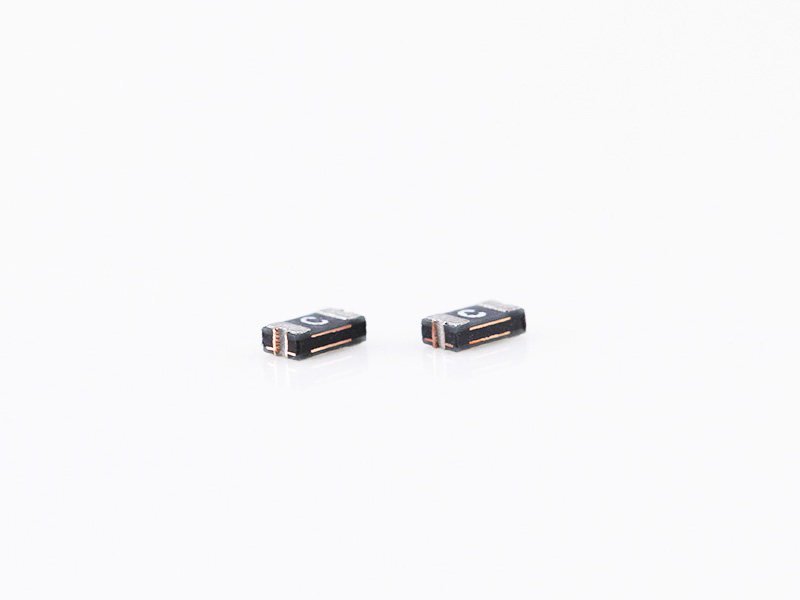

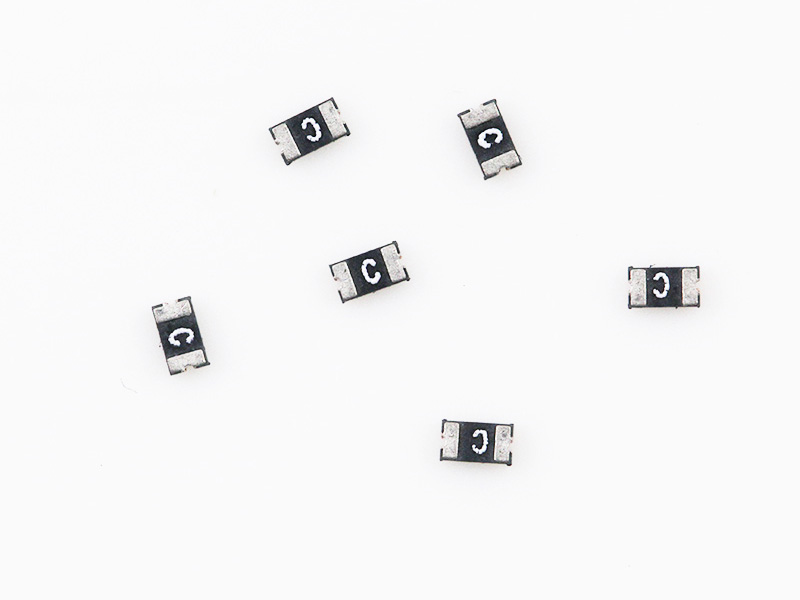

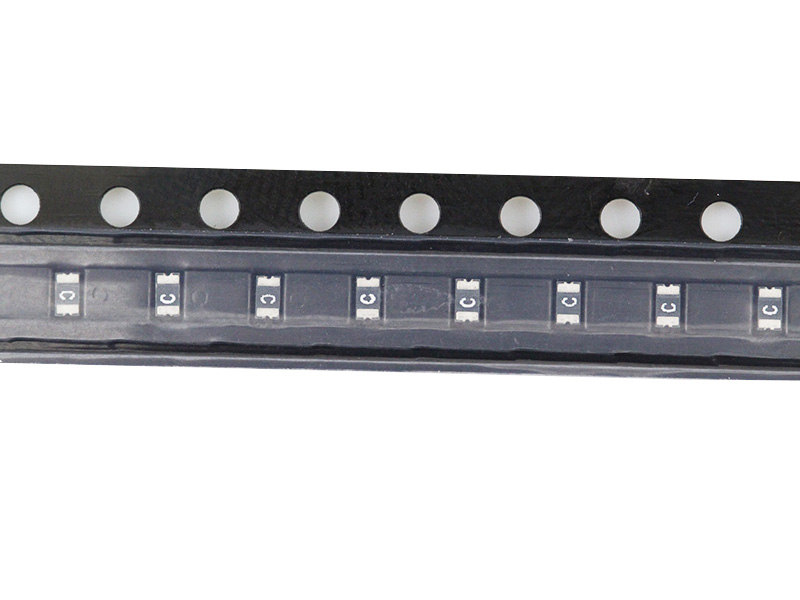

            Littelfuse 0805L Series PTC


            The 0805L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.




            •
                                            Brand：
                                            Littelfuse
              •

            •
                                            Classification：
                                            SMD Fuse
              •

            •
                                            Voltage：
                                            6V,9V,15V，24V
              •

            •
                                            Current：
                                            0.1A~1.1A
              •




































            0805L Series Electrical Characteristics
            Part Number
            Marking
            Ihold
            (A)
            Itrip
            (A)
            Vmax
            (Vdc)
            Imax
            (A)
            Pdtyp.
             (W)
            Maximum Time
            To Trip
            Resistance
            Current
             (A)
            Time
            (Sec.)
            Rmin
            (Ω)
            R1max
             (Ω)
            0805L005/30f30.050.1530400.500.251.503.60020.000
            0805L010
            A
            0.10
            0.30
            15
            100
            0.5
            0.50
            1.50
            1.000
            6.000
            0805L010/24
            J
            0.10
            0.30
            24
            100
            0.5
            0.50
            1.50
            1.500
            6.000
            0805L020
            C
            0.20
            0.50
            9
            100
            0.5
            8.00
            0.02
            0.650
            3.500
            0805L035
            E
            0.35
            0.75
            6
            100
            0.5
            8.00
            0.10
            0.250
            1.200
            0805L050
            F
            0.50
            1.00
            6
            100
            0.5
            8.00
            0.10
            0.150
            0.850
            0805L075
            G
            0.75
            1.50
            6
            40
            0.6
            8.00
            0.20
            0.090
            0.350
            0805L100
            N
            1.00
            1.95
            6
            40
            0.6
            8.00
            0.30
            0.060
            0.210
            0805L110
            H
            1.10
            2.00
            6
            100
            0.8
            8.00
            0.10
            0.050
            0.160

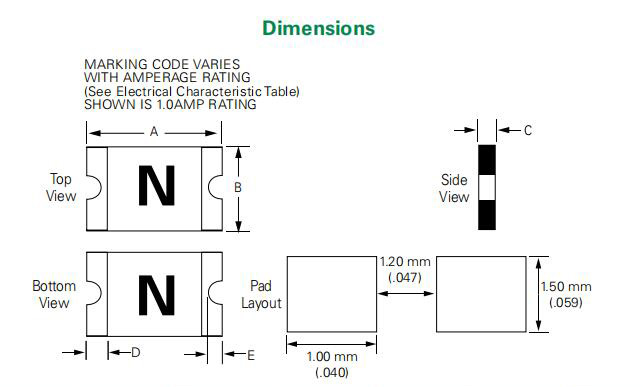

            JDTFUSE
            Part Number
            A
            B
            C
            D
            E
            Inch
            mm
            Inch
            mm
            Inch
            mm
            Inch
            mm
            Inch
            mm
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            Min
            Max
            0805L005/30
            0.08
            0.09
            		2.002.200.050.061.201.500.030.050.751.250.010.020.200.550.0020.020.050.45
            0805L010
            		0.080.092.002.200.050.061.201.500.020.040.551.000.010.020.200.550.0020.020.050.45
            0805L010/24
            		0.080.092.002.200.050.061.201.500.020.040.551.000.010.020.200.550.0020.020.050.45
            0805L020
            		0.080.092.002.200.050.061.201.500.020.040.551.000.010.020.200.550.0020.020.050.45
            0805L035
            		0.080.092.002.200.050.061.201.500.020.030.450.750.010.020.200.550.0020.020.050.45
            0805L050
            		0.080.092.002.200.050.061.201.500.030.050.751.250.010.020.200.550.0020.020.050.45
            0805L075
            		0.080.092.002.200.050.061.201.500.030.050.751.250.010.020.200.550.0020.020.050.45
            0805L100
            		0.080.092.002.200.050.061.201.500.020.070.501.800.010.020.200.550.0020.020.050.45
            0805L110
            		0.080.092.002.200.050.061.201.500.030.060.801.400.010.020.200.550.0020.020.050.45
