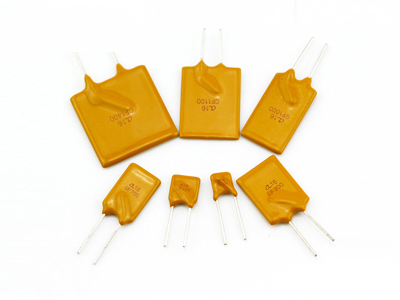

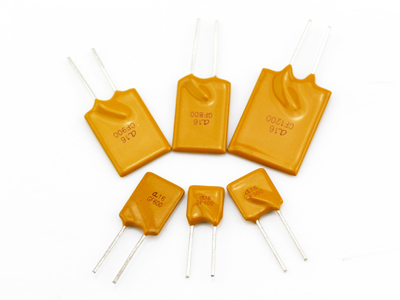

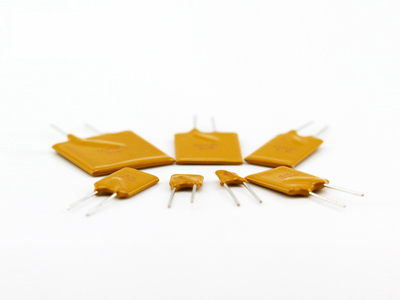

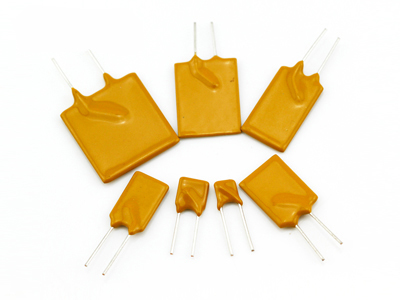

A16系列 -自恢復保險絲
A16系列自恢復保險絲產品適用于工作電壓較低、工作電流較大的電路中，可廣泛應用于電源轉換器、摩托車、汽車、電腦電源、微電機、計算機接口、CPU等領域。
- 品牌： 集電通/JDTFUSE
- 分類： 插件保險絲PTC
- 最大電壓： 16V
- 額定電流： 0.3A-14A
A16規格書
電氣特性（25°C）
Model | Vmax | Imax | Ihold | Itrip | Pdtyp. | Current | Time | Rimin | Rimax | R1max |
(Vdc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (Ω) | (Ω) | (Ω) | |
A16-030 | 16 | 40 | 0.30 | 0.60 | 1.0 | 1.50 | 10.0 | 0.030 | 0.900 | 1.30 |
A16-050 | 16 | 40 | 0.50 | 1.00 | 1.0 | 2.50 | 10.0 | 0.200 | 0.500 | 0.76 |
A16-065 | 16 | 40 | 0.65 | 1.30 | 1.0 | 3.25 | 10.0 | 0.120 | 0.480 | 0.65 |
A16-075 | 16 | 40 | 0.75 | 1.50 | 1.0 | 3.75 | 10.0 | 0.100 | 0.320 | 0.40 |
A16-090 | 16 | 40 | 0.90 | 1.80 | 1.0 | 4.50 | 10.0 | 0.090 | 0.180 | 0.25 |
A16-100 | 16 | 40 | 1.00 | 2.00 | 1.0 | 5.00 | 10.0 | 0.060 | 0.150 | 0.24 |
A16-110 | 16 | 40 | 1.10 | 2.20 | 1.0 | 5.50 | 10.0 | 0.060 | 0.150 | 0.24 |
A16-120 | 16 | 40 | 1.20 | 2.40 | 1.0 | 6.00 | 10.0 | 0.050 | 0.180 | 0.24 |
A16-135 | 16 | 40 | 1.35 | 2.70 | 1.5 | 6.75 | 10.0 | 0.040 | 0.130 | 0.19 |
A16-160 | 16 | 40 | 1.60 | 3.20 | 1.5 | 8.00 | 15.0 | 0.030 | 0.110 | 0.20 |
A16-185 | 16 | 40 | 1.85 | 3.70 | 1.5 | 9.25 | 15.0 | 0.030 | 0.100 | 0.16 |
A16-200 | 16 | 40 | 2.00 | 4.00 | 1.5 | 10.0 | 15.0 | 0.018 | 0.075 | 0.14 |
A16-250 | 16 | 40 | 2.50 | 5.00 | 1.5 | 12.5 | 15.0 | 0.020 | 0.070 | 0.12 |
A16-300 | 16 | 40 | 3.00 | 6.00 | 2.3 | 15.0 | 10.0 | 0.020 | 0.070 | 0.11 |
A16-400 | 16 | 40 | 4.00 | 8.00 | 2.4 | 20.0 | 10.0 | 0.020 | 0.040 | 0.08 |
A16-500 | 16 | 40 | 5.00 | 10.0 | 2.6 | 25.0 | 10.0 | 0.014 | 0.025 | 0.038 |
A16-600 | 16 | 40 | 6.00 | 12.0 | 2.8 | 30.0 | 10.0 | 0.001 | 0.021 | 0.031 |
A16-700 | 16 | 40 | 7.00 | 14.0 | 3.0 | 35.0 | 10.0 | 0.008 | 0.015 | 0.023 |
A16-800 | 16 | 40 | 8.00 | 16.0 | 3.0 | 40.0 | 10.0 | 0.006 | 0.013 | 0.021 |
A16-900 | 16 | 40 | 9.00 | 18.0 | 3.3 | 45.0 | 12.0 | 0.004 | 0.012 | 0.018 |
A16-1000 | 16 | 40 | 10.00 | 20.0 | 3.6 | 50.0 | 12.5 | 0.004 | 0.011 | 0.015 |
A16-1100 | 16 | 40 | 11.00 | 22.0 | 3.7 | 55.0 | 13.5 | 0.003 | 0.009 | 0.013 |
A16-1200 | 16 | 40 | 12.00 | 24.0 | 4.2 | 60.0 | 16.0 | 0.003 | 0.008 | 0.012 |
A16-1400 | 16 | 40 | 14.00 | 28.0 | 4.6 | 70.0 | 20.0 | 0.003 | 0.007 | 0.011 |
V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流. (推薦閱讀：A30系列 |自恢復保險絲)
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.
JDTFUSE | Cross Reference | ||
Tyco / PolySwitch? | Bours / Multifuse? | Polytronics / EVERFUSE? | |
A16-090 | RUSBF090 | MF-RHT070 | RLD16P090BF |
A16-110 | RUSBF110 | - | RLD16P110BF |
A16-135 | RUSBF135 | - | RLD16P135BF |
A16-160 | RUSBF160 | - | RLD16P160BF |
A16-185 | RUSBF185 | MF-RHT200 | RLD16P185BF |
A16-200 | RUSBF200 | MF-RHT200 | RLD16P200BF |
A16-250 | RUSBF250 | - | RLD16P250BF |
A16-300 | RGEF300 | MF-RG300 | RLD16P300GF |
A16-400 | RGEF400 | MF-RHT450 | RLD16P400GF |
A16-500 | RGEF500 | MF-RG500 | RLD16P500GF |
A16-600 | RGEF600 | MF-RHT650 | RLD16P600GF |
A16-700 | RGEF700 | MF-RHT750 | RLD16P700GF |
A16-800 | RGEF800 | - | RLD16P800GF |
A16-900 | RGEF900 | - | RLD16P900GF |
A16-1000 | RGEF1000 | - | RLD16P1000GF |
A16-1100 | RGEF1100 | MF-R1100 | RLD16P1100GF |
A16-1200 | RGEF1200 | - | RLD16P1200GF |
A16-1300 | - | MF-RHT1300 | - |
A16-1400 | RGEF1400 | - | RLD16P1400GF |

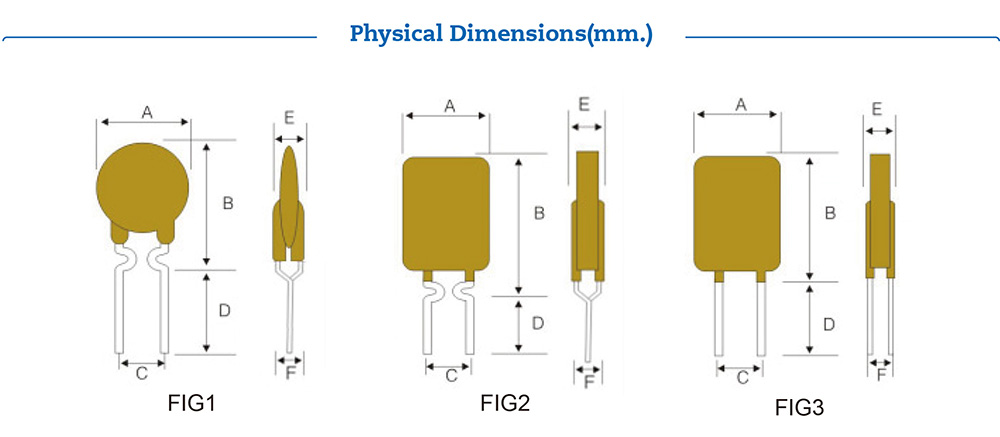

Model | A | B | C | D | E | FIG |
Max. | Max. | Typ. | Min. | Max. | ||
A16-030 | 6.90 | 13.0 | 5.1±0.5 | 7.6 | 3.1 | 1 |
A16-050 | 6.90 | 13.0 | 5.1±0.5 | 7.6 | 3.0 | 1 |
A16-065 | 6.90 | 13.0 | 5.1±0.5 | 7.6 | 3.0 | 1 |
A16-075 | 6.90 | 13.0 | 5.1±0.5 | 7.6 | 3.0 | 1 |
A16-090 | 7.40 | 14.4 | 5.1±0.5 | 7.6 | 3.0 | 1 |
A16-100 | 7.40 | 14.4 | 5.1±0.5 | 7.6 | 3.0 | 1 |
A16-110 | 7.40 | 14.4 | 5.1±0.5 | 7.6 | 3.0 | 1 |
A16-120 | 7.40 | 14.4 | 5.1±0.5 | 7.6 | 3.0 | 2 |
A16-135 | 8.90 | 16.0 | 5.1±0.5 | 7.6 | 3.0 | 2 |
A16-160 | 8.90 | 16.7 | 5.1±0.5 | 7.6 | 3.0 | 2 |
A16-185 | 10.2 | 17.7 | 5.1±0.5 | 7.6 | 3.0 | 2 |
A16-200 | 8.90 | 16.0 | 5.1±0.5 | 7.6 | 3.0 | 2 |
A16-250 | 8.90 | 16.0 | 5.1±0.5 | 7.6 | 3.0 | 2 |
A16-300 | 7.10 | 12.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-400 | 8.90 | 13.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-500 | 10.5 | 17.5 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-600 | 11.0 | 17.5 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-700 | 11.2 | 23.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-800 | 14.0 | 23.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-900 | 14.0 | 24.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-1000 | 16.5 | 26.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-1100 | 18.0 | 26.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-1200 | 18.0 | 28.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
A16-1400 | 25.0 | 30.0 | 5.1±0.5 | 7.6 | 3.0 | 3 |
RoHS報告
標簽:
A16自恢復保險絲,16V可恢復保險絲,插件保險絲
