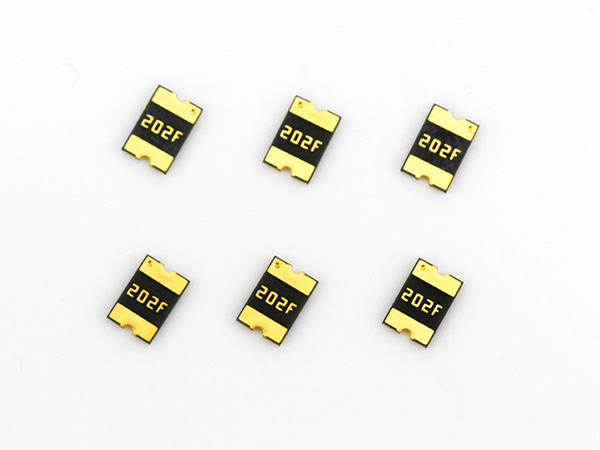

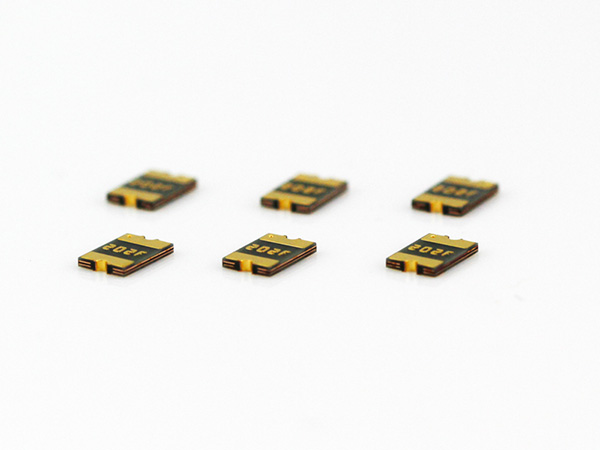

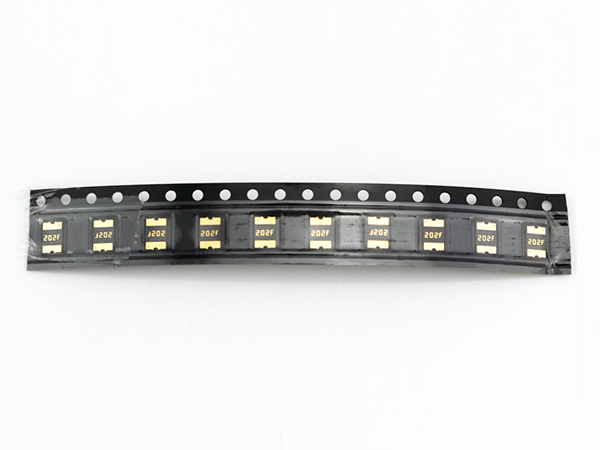

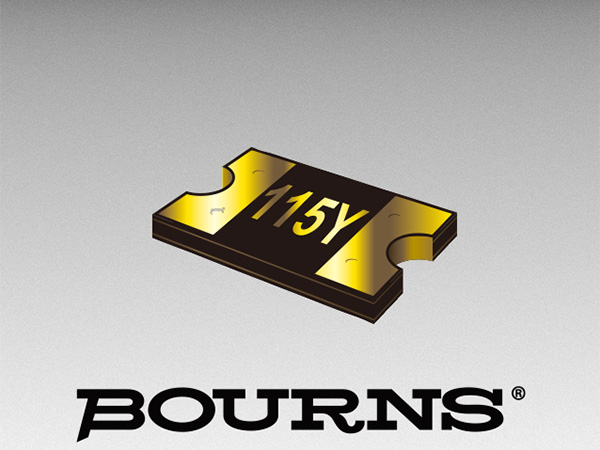

Bourns伯恩斯MF-MSMF系列自恢復保險絲
Bourns伯恩斯MF-MSMF系列自恢復保險絲屬表面貼裝保險絲，封裝尺寸為1812，符合AEC-Q200 Rev-D汽車應用中無源部件的應力測試鑒定。
與前幾代1812 SMT器件100%電氣兼容，回流焊，材質(zhì)符合RoHS標準*且無鹵素**。
- 品牌： 伯恩斯/Bourns
- 分類： SMD自恢復保險絲
- 最大電壓： 6~60V
- 額定電流： 0.1A~3A
- 封裝： 1812封裝
Bourns伯恩斯MF-MSMF系列規(guī)格書Model | Vmax. (V) | Imax. (A) | Ihold at23℃ (A) | Itrip @23℃ (A) | Pd typ. (W) | Maximum Time To Trip @23℃ | Resistance @23℃ | ||
Current (A) | Time (Sec.) | Rimin. (Ω) | R1max. (Ω) | ||||||
MF-MSMF010 | 60 | 40 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.70 | 15 |
MF-MSMF014 | 60 | 40 | 0.14 | 0.34 | 0.8 | 1.5 | 0.15 | 0.40 | 6.5 |
MF-MSMF020 | 30 | 80 | 0.20 | 0.40 | 0.8 | 6.0 | 0.06 | 0.40 | 6.0 |
MF-MSMF020/60 | 60 | 40 | 0.20 | 0.40 | 0.8 | 1.5 | 0.15 | 0.40 | 6.0 |
MF-MSMF030 | 30 | 10 | 0.30 | 0.60 | 0.8 | 8.0 | 0.10 | 0.30 | 3.0 |
MF-MSMF050 | 15 | 100 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.15 | 1.0 |
MF-MSMF050/30X | 30 | 40 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.15 | 1.3 |
MF-MSMF050/40X | 40 | 20 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.15 | 1.3 |
MF-MSMF075 | 13.2 | 100 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.11 | 0.45 |
MF-MSMF075/24 | 24 | 40 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.11 | 0.45 |
MF-MSMF075/33X | 33 | 20 | 0.75 | 1.50 | 1.4 | 8.0 | 0.20 | 0.11 | 0.40 |
MF-MSMF110 | 6 | 100 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.04 | 0.21 |
MF-MSMF110/16 | 16 | 100 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.04 | 0.21 |
MF-MSMF110/24X | 24 | 20 | 1.10 | 2.20 | 0.8 | 8.0 | 0.50 | 0.06 | 0.18 |
MF-MSMF125 | 6 | 100 | 1.25 | 2.50 | 0.8 | 8.0 | 0.40 | 0.05 | 0.14 |
MF-MSMF150 | 6 | 100 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.03 | 0.12 |
MF-MSMF150/12 | 12 | 100 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.03 | 0.12 |
MF-MSMF150/24X | 24 | 20 | 1.50 | 3.00 | 1.0 | 8.0 | 1.50 | 0.03 | 0.12 |
MF-MSMF160 | 8 | 100 | 1.60 | 2.80 | 0.8 | 8.0 | 2.00 | 0.035 | 0.099 |
MF-MSMF200 | 8 | 40 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.080 |
MF-MSMF250/16X | 16 | 100 | 2.50 | 5.00 | 1.2 | 8.0 | 5.00 | 0.015 | 0.100 |
MF-MSMF260 | 6 | 100 | 2.60 | 5.20 | 0.8 | 8.0 | 5.00 | 0.015 | 0.080 |
MF-MSMF260/16X | 16 | 100 | 2.60 | 5.00 | 1.2 | 8.0 | 5.00 | 0.015 | 0.050 |
MF-MSMF300X | 6 | 100 | 3.00 | 5.00 | 1.2 | 8.0 | 5.00 | 0.010 | 0.040 |

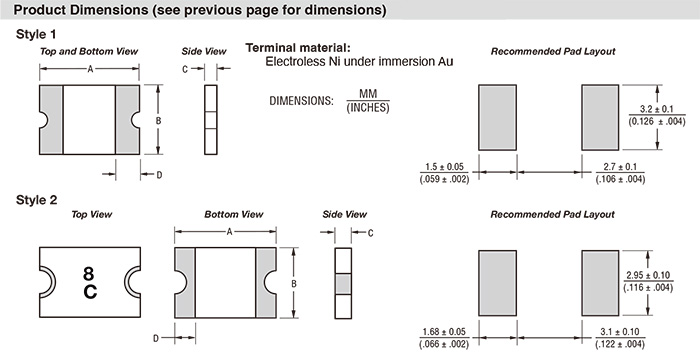

Model | A | B | C | D | Style | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | ||
| MF-MSMF010 | 4.37/0.172 | 4.73/0.186 | 3.07/0.121 | 3.41/0.134 | 0.7/0.028 | 1.1/0.043 | 0.3/0.012 | 1 |
| MF-MSMF014 | 1 | |||||||
| MF-MSMF020 | 1 | |||||||
| MF-MSMF020/60 | 1 | |||||||
| MF-MSMF030 | 1 | |||||||
| MF-MSMF050 | 0.55/0.022 | 0.85/0.033 | 1 | |||||
| MF-MSMF050/30X | 0.4/0.016 | 0.85/0.033 | 2 | |||||
| MF-MSMF050/40X | 2 | |||||||
| MF-MSMF075 | 0.55/0.022 | 0.85/0.033 | 1 | |||||
| MF-MSMF075/24 | 1 | |||||||
| MF-MSMF075/33X | 0.7/0.028 | 1.6/0.063 | 2 | |||||
| MF-MSMF110 | 0.55/0.022 | 0.85/0.033 | 1 | |||||
| MF-MSMF110/16 | 1 | |||||||
| MF-MSMF110/24X | 0.7/0.028 | 1.6/0.063 | 2 | |||||
| MF-MSMF125 | 0.55/0.022 | 0.85/0.033 | 1 | |||||
| MF-MSMF150 | 1 | |||||||
| MF-MSMF150/12 | 1 | |||||||
| MF-MSMF150/24X | 0.7/0.028 | 1.6/0.063 | 2 | |||||
| MF-MSMF160 | 0.55/0.022 | 0.85/0.033 | 1 | |||||
| MF-MSMF200 | 0.45/0.018 | 0.85/0.033 | 1 | |||||
| MF-MSMF250/16X | 0.7/0.028 | 1.6/0.063 | 2 | |||||
| MF-MSMF260 | 0.45/0.018 | 0.85/0.033 | 1 | |||||
| MF-MSMF260/16X | 0.7/0.028 | 1.6/0.063 | 2 | |||||
| MF-MSMF300X | 2 | |||||||
DIMENSIONS:MM/INCHES
