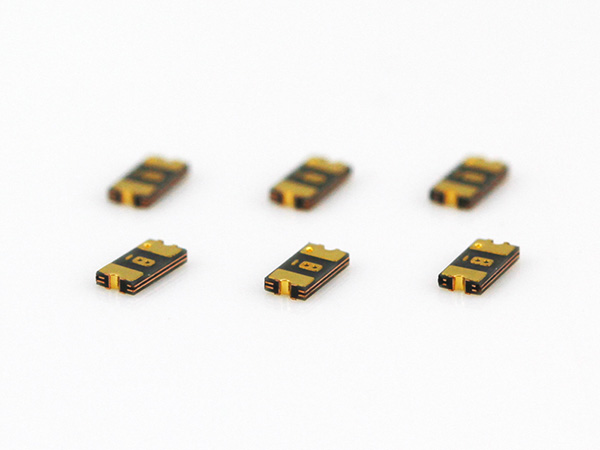

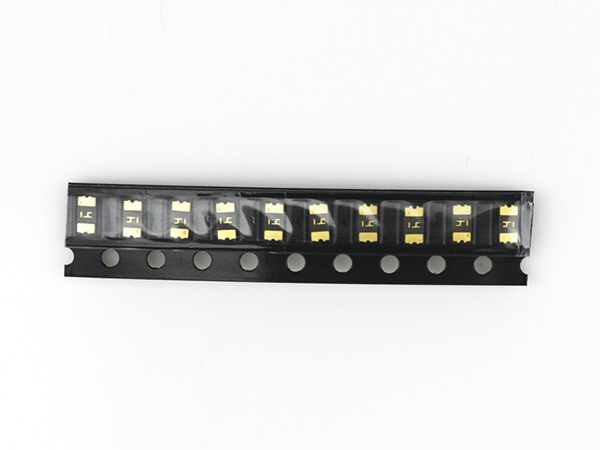

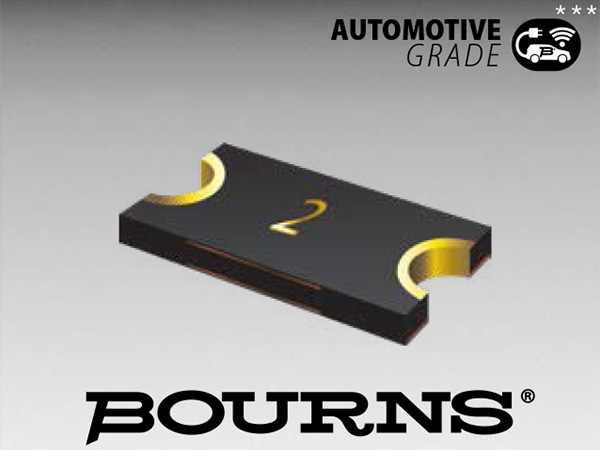

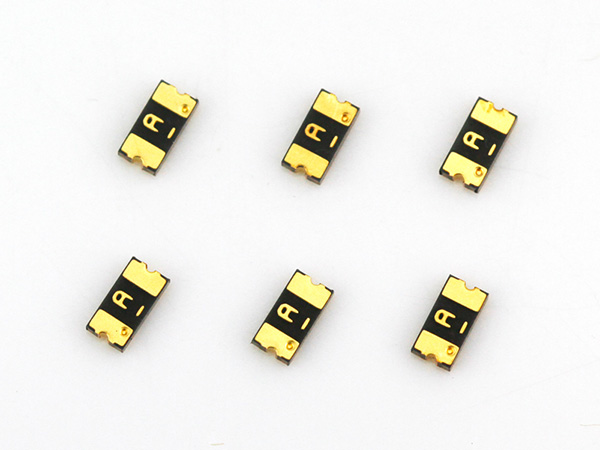

            Bourns伯恩斯MF-NSMF系列自恢復保險絲


            Bourns伯恩斯MF-NSMF系列自恢復保險絲屬表面貼裝保險絲，封裝尺寸為1206，小體積，緊湊設計，節省板子空間；反應時間快。符合RoHS標準*且無鹵素**。




            •
                                            品牌：
                                            伯恩斯/Bourns
              •

            •
                                            分類：
                                            SMD自恢復保險絲
              •

            •
                                            最大電壓：
                                            6~60V
              •

            •
                                            額定電流：
                                            0.05A~0.75A
              •

            •
                                            封裝：
                                            1206封裝
              •




































            JDTFUSEBourns伯恩斯MF-NSMF系列規格書
            Model
            Vmax.
             (V)
            Imax.
             (A)
            Ihold

 at23℃
            (A)
            Itrip

 @23℃
            (A)
            Pd
            typ.
            (W)
            Maximum Time To Trip
            @23℃
            Resistance
            @23℃
            Current
            (A)
            Time  (Sec.)
            Rimin.
             (Ω)
            R1max.
             (Ω)
            MF-NSMF005/30X
            30
            40
            0.05
            0.15
            0.6
            0.5
            1.50
            2.80
            20
            MF-NSMF005/60X
            60
            10
            0.05
            0.15
            0.6
            0.5
            1.50
            2.80
            20
            MF-NSMF010/30X
            30
            40
            0.10
            0.25
            0.6
            0.5
            1.50
            1.35
            15
            MF-NSMF010/60X
            60
            10
            0.10
            0.25
            0.6
            0.5
            1.50
            1.35
            15
            MF-NSMF012
            30
            10
            0.12
            0.29
            0.6
            1.0
            0.20
            1.35
            8.5
            MF-NSMF012/48X
            48
            10
            0.12
            0.29
            0.6
            1.0
            0.20
            1.00
            6.5
            MF-NSMF016
            30
            10
            0.16
            0.37
            0.6
            1.0
            0.30
            0.70
            6.0
            MF-NSMF016/48X
            48
            10
            0.16
            0.37
            0.6
            1.0
            0.30
            0.70
            5.0
            MF-NSMF020
            24
            10
            0.20
            0.46
            0.6
            1.0
            0.6
0
            0.60
            2.6
            MF-NSMF020X
            30
            60
            0.20
            0.40
            0.6
            1.0
            0.60
            0.60
            3.3
            MF-NSMF025X
            16
            20
            0.25
            0.50
            0.6
            8.0
            0.08
            0.45
            2.3
            MF-NSMF025/24X
            24
            80
            0.25
            0.50
            0.6
            8.0
            0.05
            0.45
            2.3
            MF-NSMF025/30X
            30
            60
            0.25
            0.50
            0.6
            8.0
            0.05
            0.45
            2.3
            MF-NSMF035
            6
            100
            0.35
            0.75
            0.6
            8.0
            0.10
            0.30
            1.2
            MF-NSMF035X
            16
            20
            0.35
            0.75
            0.6
            3.5
            0.14
            0.30
            1.4
            MF-NSMF035/24X
            24
            80
            0.35
            0.75
            0.6
            8.0
            0.10
            0.30
            1.4
            MF-NSMF035/30X
            30
            60
            0.35
            0.75
            0.6
            8.0
            0.10
            0.30
            1.4
            MF-NSMF050/8X
            8
            100
            0.50
            1.00
            0.6
            8.0
            0.10
            0.15
            0.75
            MF-NSMF050
            13.2
            100
            0.50
            1.00
            0.6
            8.0
            0.10
            0.15
            0.70
            MF-NSMF050/16X
            16
            100
            0.50
            1.00
            0.6
            8.0
            0.10
            0.15
            0.75
            MF-NSMF050/24X
            24
            80
            0.50
            1.00
            0.6
            8.0
            0.10
            0.15
            0.75
            MF-NSMF075
            6
            100
            0.75
            1.50
            0.6
            8.0
            0.20
            0.10
            0.40
            MF-NSMF075/8X
            8
            100
            0.75
            1.50
            0.6
            8.0
            0.10
            0.09
            0.35
            MF-NSMF075/13X
            13.2
            100
            0.75
            1.50
            0.6
            8.0
            0.10
            0.09
            0.35
            MF-NSMF075X/16
            16
            100
            0.75
            1.50
            0.6
            8.0
            0.10
            0.09
            0.35

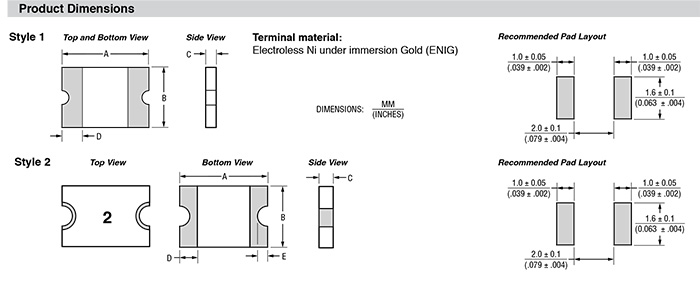

            JDTFUSE
            Model
            A
            B
            C
            D
            E
            Style
            Min.
            Max.
            Min.
            Max.
            Min.
            Max.
            Max..
            Min.
            Min.
            Max.
            MF-NSMF005/30X3/0.1183.4/0.1341.4/0.0551.8/0.0710.6/0.0241.1/0.0430.25/0.011/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF005/60X0.6/0.0241.1/0.043
            2
            MF-NSMF010/30X0.6/0.0241.1/0.043
            2
            MF-NSMF010/60X0.6/0.0241.1/0.043
            2
            MF-NSMF0120.7/0.0281.1/0.043
            1
            MF-NSMF012/48X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF0160.48/0.0190.85/0.033
            1
            MF-NSMF016/48X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF0200.48/0.0190.85/0.033
            1
            MF-NSMF020X0.4/0.0160.85/0.0331/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF025X0.4/0.0160.85/0.033
            2
            MF-NSMF025/24X0.4/0.0160.85/0.033
            2
            MF-NSMF025/30X0.4/0.0160.85/0.033
            2
            MF-NSMF0350.4/0.0160.85/0.033
            1
            MF-NSMF035X0.4/0.0160.85/0.0331/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF035/24X0.4/0.0160.85/0.033
            2
            MF-NSMF035/30X0.75/0.031.25/0.049
            2
            MF-NSMF050/8X0.4/0.0160.85/0.033
            2
            MF-NSMF0500.48/0.0190.85/0.033
            1
            MF-NSMF050/16X0.4/0.0160.85/0.0331/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF050/24X0.75/0.031.25/0.049
            2
            MF-NSMF0750.4/0.0160.7/0.028
            1
            MF-NSMF075/8X0.35/0.0140.8/0.0311/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF075/13X0.7/0.0281.2/0.047
            2
            MF-NSMF075/16X0.7/0.0281.2/0.047
            2
            MF-NSMF1100.4/0.0160.7/0.028
            1
            MF-NSMF110/6X0.35/0.0140.8/0.0311/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF110/16X0.6/0.0241.1/0.043
            2
            MF-NSMF1250.4/0.0160.7/0.028
            1
            MF-NSMF125/8X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF1500.4/0.0160.7/0.028
            1
            MF-NSMF150/6X0.6/0.0241.1/0.0431/0.0390.05/0.0020.035/0.014
            2
            MF-NSMF01753.5/0.1380.7/0.0281.6/0.063
            1
            MF-NSMF2000.7/0.0281.6/0.063
            1
            DIMENSIONS:MM/INCHES
