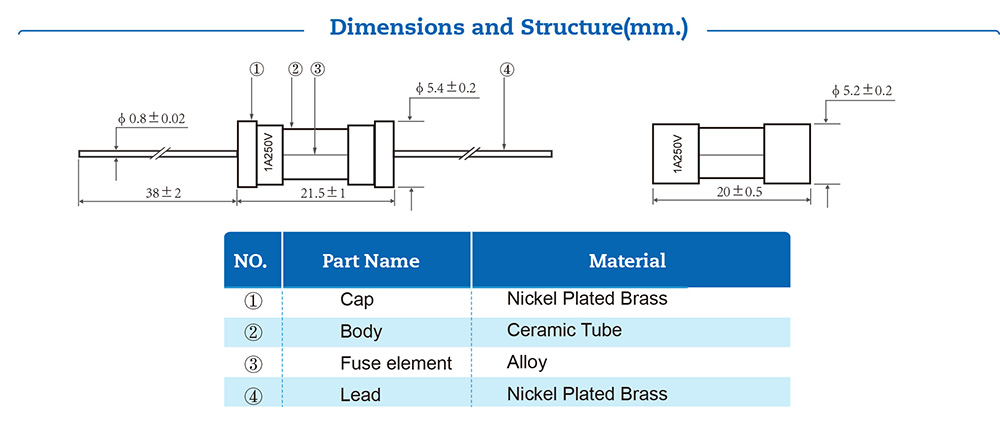

深圳市集電通實業有限公司JFC5T陶瓷保險管屬慢斷型保險管，尺寸：5*20MM ；
耐壓值：250V；
額定電流：0.1-30A；
類別：帶引腳/不帶引腳，慢熔；
特點：電壓為250V的，可為普通家用電器提供電路保護，超強的抗浪涌能力，不帶引線的陶瓷管也套座子焊接，帶引線的可直接焊接在電路中，電流范圍廣。
應用：可作為儀表或各種用電設備的輔助保護，為產品或內部電路提供單獨保護。
Part Number | Rate Current (A) | Max Voltage Rating (V) | Interrupting Rating | Max Voltage Drop (mV) | Nominal Melting I2t (A2sec) |
JFC5T0100N/L | 0.100 | 250 | 1500A@250V | 7000 | 0.0005 |
JFC5T0125N/L | 0.125 | 5000 | 0.0008 | ||
JFC5T0160N/L | 0.160 | 4300 | 0.002 | ||
JFC5T0200N/L | 0.200 | 3500 | 0.009 | ||
JFC5T0250N/L | 0.250 | 2800 | 0.01 | ||
JFC5T0315N/L | 0.315 | 2500 | 0.06 | ||
JFC5T0400N/L | 0.400 | 2000 | 0.1 | ||
JFC5T0500N/L | 0.500 | 1800 | 0.2 | ||
JFC5T0630N/L | 0.630 | 1500 | 0.3 | ||
JFC5T0750N/L | 0.750 | 1400 | 0.3 | ||
JFC5T0800N/L | 0.800 | 1200 | 0.4 | ||
JFC5T1100N/L | 1.00 | 1000 | 0.6 | ||
JFC5T1125N/L | 1.25 | 800 | 0.8 | ||
JFC5T1150N/L | 1.50 | 600 | 1.0 | ||
JFC5T1160N/L | 1.60 | 600 | 1.2 | ||
JFC5T1200N/L | 2.00 | 500 | 3.4 | ||
JFC5T1250N/L | 2.50 | 400 | 7.2 | ||
JFC5T1300N/L | 3.00 | 350 | 8.5 | ||
JFC5T1315N/L | 3.15 | 350 | 9.2 | ||
JFC5T1350N/L | 3.50 | 350 | 9.2 | ||
JFC5T1400N/L | 4.00 | 300 | 14 | ||
JFC5T1500N/L | 5.00 | 250 | 25 | ||
JFC5T1600N/L | 6.00 | 250 | 25 | ||
JFC5T1630N/L | 6.30 | 200 | 64 | ||
JFC5T1700N/L | 7.00 | 200 | 81 | ||
JFC5T1800N/L | 8.00 | 200 | 96 | ||
JFC5T2100N/L | 10.0 | 200 | 106 | ||
JFC5T2120N/L | 12.0 | 180 | 125 | ||
JFC5T2125N/L | 12.5 | 500A@250V | 180 | 135 | |
JFC5T2150N/L | 15.0 | 160 | 160 | ||
JFC5T2160N/L | 16.0 | 160 | 170 | ||
JFC5T2200N/L | 20.0 | 300A@250V | 150 | 200 | |
JFC5T2250N/L | 25.0 | 120 | 240 | ||
JFC5T2300N/L | 30.0 | 100 | 300 |
JFC5T規格書
